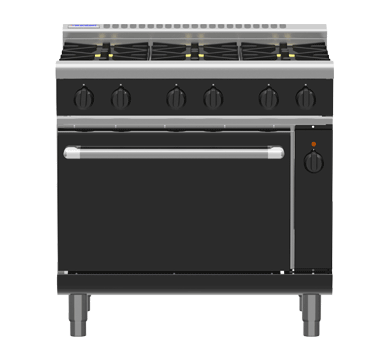

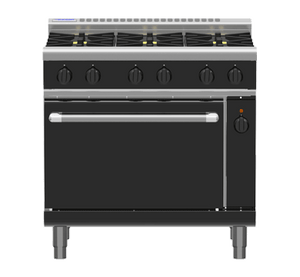

Waldorf RNB8610GEC Bold 900mm Gas Range Electric Convection Oven

The Waldorf Bold RNB8610GEC is a 900mm wide commercial range combining a six-burner gas cooktop with a 2/1 GN electric convection oven, purpose-built for high-volume commercial kitchens. Manufactured in New Zealand from 304 stainless steel, it delivers 168MJ/hr of total burner output across six patented 28MJ/hr open burners, paired with a fan-forced electric convection oven that reduces cooking times and allows food to be cooked at lower temperatures for improved energy efficiency.

Engineered for durability and ease of operation, the RNB8610GEC features heavy-duty cast iron burners, vitreous enamel pot stands and a welded vitreous enamel oven lining for straightforward cleaning and long service life. Flame failure protection is fitted to every burner for workplace safety, while adjustable feet and two additional rollers simplify positioning and installation. The default finish is black with additional colour options available, making it a practical centrepiece for any professional kitchen fit-out.

Key Benefits

• Fan-forced convection circulation delivers consistent, even heat throughout the oven cavity, reducing cooking times and enabling lower temperature operation to save energy.
• Six high-output 28MJ/hr open burners provide rapid, responsive heat across the entire cooktop, supporting simultaneous multi-pan cooking during peak service.
• 2/1 GN oven capacity allows batch cooking across multiple full gastronorm trays, increasing throughput for busy cafes, restaurants and catering operations.
• Flame failure protection on every burner automatically cuts gas flow if a flame is extinguished, reducing safety risks in fast-paced kitchen environments.
• Vitreous enamel pot stands and welded oven lining are smooth and non-porous, making daily cleaning faster and reducing labour time between services.
• Removable cast iron burners and reinforced control knobs are built to withstand the rigours of continuous commercial use, minimising maintenance downtime.
• Adjustable feet and two additional rollers allow straightforward levelling and repositioning during installation, cleaning or service.
• Cool touch stainless steel door handle and drop-down door with welded frame keep the front of the unit safe to handle and structurally robust over years of use.
• Compatible with both natural gas and LPG, the unit suits a wide range of site configurations without requiring special ordering.

Key Features

• 900mm wide Waldorf Bold series configuration with full splashback
• Six-burner gas cooktop with patented 28MJ/hr open burners, totalling 168MJ/hr output
• 2/1 GN electric convection oven with heavy-duty motor and circulation fan
• Oven temperature range 150-300°C with thermostatic control
• Flame failure protection fitted to all six burners
• Removable heavy-duty cast iron burners for easy cleaning and servicing
• Vitreous enamel pot stands for durable, cleanable cooktop surface
• Drop-down oven door with welded frame for structural integrity
• Oven interior welded and lined with vitreous enamel for hygiene and easy maintenance
• Cool touch stainless steel door handle
• Cast iron sole plates inside the oven for even heat distribution
• Heavy-duty reinforced control knobs rated for continuous commercial use
• Adjustable feet plus two additional rollers for levelling and manoeuvrability
• 304 stainless steel construction throughout
• Default finish is black; additional colour options available to order
• Power supply: 415V 3-phase, 6.6kW electric oven connection (1-phase connection)
• Gas connection: R 3/4 BSP male; compatible with natural gas and LPG
• Two oven shelves included
• Country of origin: New Zealand
• 24-month warranty
• Note: product images may depict the RNLB8610GEC low back variant of the same model

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 168
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 6
• Power Rating: 1 phase connection|6.6kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
