Overview

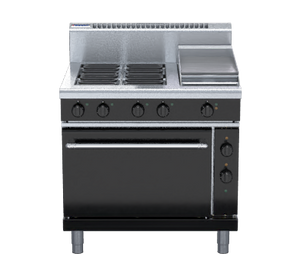

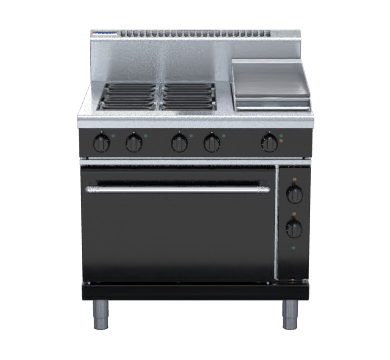

Waldorf Bold RNB8613EC 900mm Electric Range Convection Oven

The Waldorf Bold RNB8613EC is a heavy-duty 900mm freestanding electric range convection oven built for high-volume commercial kitchens. It brings together a four-element open radiant cooktop, a 300mm griddle section, and a full GN 2/1 fan-forced convection oven into a single unit, delivering broad cooking versatility while standing up to the rigours of professional kitchen environments.

The unit is built on a galvanised steel chassis with 304 stainless steel surfaces throughout, and incorporates vitreous enamelled oven lining, high-density fibreglass insulation, and a welded drop-down oven door secured by a robust spring hinge assembly. Adjustable feet and two rollers make positioning and servicing straightforward, and the Waldorf Bold aesthetic is supplied in black as standard with additional colour options available on request.

Key Benefits

• Fan-forced convection driven by a 200mm circulation fan ensures even heat distribution at every rack position, eliminating hot spots for consistent baking and roasting results across full batch loads.
• GN 2/1 oven capacity with four-position racking supports large-scale batch cooking, accommodating full-size gastronorm trays to maximise throughput during peak service periods.
• Four 2.4kW open radiant elements combined with a 3.6kW griddle element deliver high-output cooktop versatility, enabling simultaneous sautéing, boiling, and griddling across a single appliance.
• A cast iron even-heat oven sole plate maintains stable oven floor temperatures, making it well suited to bread baking, pastry work, and roasting applications.
• Vitreous enamelled element module, hob spill trays, and oven liner allow faster, more thorough cleaning between services.
• Adjustable feet and two integrated rollers simplify installation, repositioning, and access for routine maintenance.
• A stay-cool stainless steel door handle fitted with robust cast metal mounts minimises burn risk and holds up under repeated heavy use.
• An optional hot plate configuration provides a machine-finished 8mm steel plate cooking surface, broadening cooktop setup options to suit different kitchen workflows.
• Heavy-duty reinforced control knobs and fully welded construction throughout support long-term durability in demanding commercial settings.

Key Features

• 900mm wide freestanding electric range with integrated convection oven
• Galvanised steel chassis with welded hob construction
• Welded hob featuring a 1.5mm 304 stainless steel rolled bull nose profile; splashback and hob sides in 1.2mm 304 stainless steel
• Exterior front panels and oven side cladding constructed from 0.9mm 304 stainless steel sheet
• Pedestal legs 150mm in height, formed from 63mm diameter 304 stainless steel tube at 1.2mm wall thickness, with adjustable feet and two additional rollers
• Four 2.4kW open radiant elements, each secured within purpose-built heavy-duty welded frames
• Vitreous enamelled element module and removable hob spill trays for simplified cleaning
• 300mm griddle section with 12mm thick mild steel griddle plates and 2.5mm 304 stainless steel splash guards
• Single 3.6kW griddle element; griddle positioned on the right-hand side as standard, available left-hand side or centre to order
• Six temperature settings plus a simmer setting on cooktop controls
• Aluminised steel internal cooktop construction
• Optional hot plate elements offering a machine-finished 8mm solid steel plate cooking surface
• GN 2/1 convection oven with four-position racking
• Fully welded oven liner with vitreous enamel coating
• Cast iron oven sole plate for even-heat floor distribution; total oven heating element output of 6.5kW
• 100W heavy-duty oven motor powering a 200mm diameter circulation fan
• High-density fibreglass insulated oven cavity
• Heavy-duty easy-remove chrome wire rack supports; two chrome wire oven racks supplied as standard
• Welded frame drop-down oven door with a robust spring-loaded hinge assembly
• Outer door panel in 0.9mm 304 stainless steel
• Press-formed vitreous enamelled inner door panel in 1.0mm steel
• Stay-cool stainless steel door handle mounted on cast metal brackets
• Heavy-duty reinforced control knobs
• Waldorf Bold styling; default colour black with additional colour options available on request
• Total packed volume: 1.03m³
• Packed weight: 263kg

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
