Overview

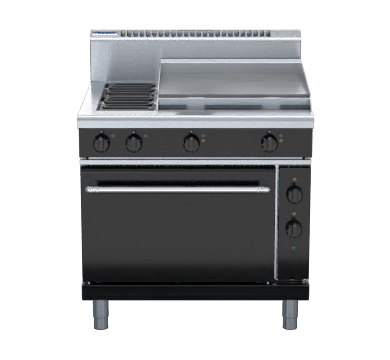

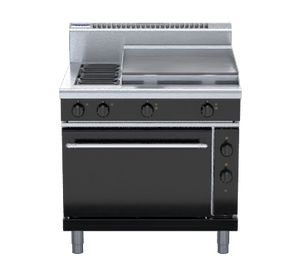

Waldorf RNB8616E Bold 900mm Electric Range Static Oven

The Waldorf Bold RNB8616E is a 900mm wide commercial electric range that brings together a two-element radiant cooktop and a 600mm griddle section alongside a GN 2/1 electric static oven. The cooktop houses two 2.4kW open radiant elements mounted in heavy-duty welded element frames with stainless steel spill trays, plus two 3.6kW griddle elements driving 12mm thick mild steel griddle plates, with the griddle positioned on the right-hand side as standard and left-hand side or centre positioning available to order. Optional hot plate elements fitted with a machine-finished 8mm steel plate provide added versatility to suit individual kitchen workflows.

The unit is constructed on a galvanised steel chassis clad in heavy-duty 304 stainless steel, with a 1.5mm welded hob and bull nose, 1.2mm splashback and hob sides, and front panels together with oven sides finished in 0.9mm 304 stainless steel sheet. The GN 2/1 electric static oven features a fully welded vitreous enamelled liner, a cast iron even-heat sole plate, 6.5kW heating elements, six temperature settings plus a simmer setting, four-position oven racking with two supplied chrome wire racks, high-density fibreglass insulation, and a welded frame drop-down door complete with a heavy-duty spring hinge. The door is faced in a 0.9mm 304 stainless steel outer skin, with a 1.0mm press-formed vitreous enamelled inner panel, and is fitted with a stay-cool stainless steel handle incorporating cast metal handle mounts.

Key Benefits

• Even heat distribution across the full GN 2/1 cavity is promoted by the cast iron oven sole plate, delivering consistent baking and roasting results throughout the oven floor.
• Six temperature settings plus a simmer setting provide chefs with fine-grained control across a wide range of cooking tasks, reducing the risk of over- or under-cooking.
• The 600mm griddle section with 12mm thick mild steel plates and two 3.6kW elements delivers high-output, even searing and cooking suited to busy service periods.
• A vitreous enamelled oven liner and stainless steel spill trays make cleaning straightforward, reducing downtime between services.
• Adjustable feet and two additional rollers simplify installation and allow the unit to be repositioned for cleaning or service access.
• Four-position oven racking supplied with two chrome wire racks and easy-remove chrome wire rack supports accommodates varying tray sizes and menu requirements.
• Heavy-duty reinforced control knobs and a welded frame drop-down door with a robust spring hinge system are built to withstand continuous commercial use.
• The ability to specify griddle position as right-hand, left-hand or centre, combined with optional hot plate elements, allows the configuration to be matched to individual kitchen workflows.
• A default black colour finish with additional colour options available supports seamless integration within the broader Waldorf Bold suite.

Key Features

• 900mm wide unit on a galvanised steel chassis with a 1.5mm 304 stainless steel welded hob and bull nose
• Splashback and hob sides in 1.2mm 304 stainless steel; the outer cladding on the front panels and oven sides is formed from 0.9mm 304 stainless steel sheet
• 150mm legs of 63mm diameter fabricated in 1.2mm 304 stainless steel tubing with adjustable feet, plus two additional rollers
• Two 2.4kW open radiant elements mounted in heavy-duty welded element frames with stainless steel spill trays
• 600mm griddle section with 12mm thick mild steel griddle plates, two 3.6kW griddle elements and 2.5mm 304 stainless steel splash guards
• Griddle positioned on the right-hand side as standard; left-hand side or centre positioning available to order
• Optional hot plate elements equipped with a machine-finished 8mm steel cooking plate
• Aluminised steel internal cooktop construction
• GN 2/1 electric static oven with 6.5kW heating elements
• Fully welded and vitreous enamelled oven liner for durability and easy cleaning
• Cast iron even-heat oven sole plate for consistent temperature distribution across the oven floor
• Four-position oven racking supplied with two chrome wire oven racks
• Heavy-duty easy-remove chrome wire rack supports
• High-density fibreglass oven insulation for energy efficiency and cool exterior surfaces
• Welded frame drop-down oven door with a heavy-duty spring hinge system
• Oven door constructed with a 0.9mm 304 stainless steel outer skin and a 1.0mm press-formed vitreous enamelled inner panel
• Stay-cool stainless steel door handle fitted with cast metal handle mounts

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
