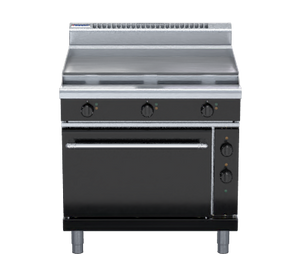

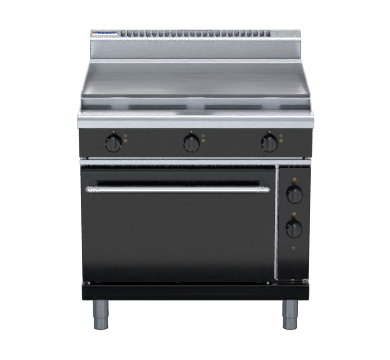

Waldorf RNB8619EC Bold 900mm Electric Range Convection Oven

The Waldorf Bold RNB8619EC is a 900mm wide electric range combining a griddle cooktop with a 2/1 GN fan-forced convection oven, purpose-built for high-volume commercial kitchens, bakeries and catering venues. The unit is built on a galvanised steel chassis clad throughout in 304 stainless steel, with vitreous enamel oven lining and a cast iron sole plate for consistent, even heat distribution across every cook cycle.

Three 3.6kW griddle elements with 12mm thick mild steel griddle plates deliver robust, controllable surface cooking, while the 6.5kW convection oven below provides four-position racking with GN 2/1 capacity for efficient batch cooking. Adjustable feet and two additional rollers make positioning and daily service straightforward, and the default black finish can be specified in alternative colours to suit your kitchen fit-out.

Key Benefits

• Fan-forced convection with a 200mm diameter, 100W heavy-duty motor ensures uniform heat throughout the oven cavity, reducing hot spots and producing consistent baking and roasting results across all rack positions.
• GN 2/1 capacity with four-position racking maximises oven throughput, allowing large-scale batch cooking of trays, pans and gastronorm containers simultaneously.
• Cast iron even-heat oven sole plate retains and distributes heat evenly across the oven floor, improving browning and reducing cook-time variation.
• Three 3.6kW griddle elements with six temperature settings plus a simmer setting give precise, flexible control for a wide range of surface cooking tasks from gentle saucing to high-heat searing.
• The oven cavity and element module feature vitreous enamel lining, making cleaning faster and more thorough and reducing turnaround time between services.
• Heavy-duty reinforced control knobs, a welded-frame drop-down door incorporating a robust spring hinge assembly, and high-density fibreglass insulation are designed to withstand the rigours of continuous commercial use.
• Adjustable feet and two integrated rollers simplify installation, repositioning and routine servicing without requiring additional equipment.
• Optional hot plate elements fitted with machine-finished 8mm steel cooking plates provide added versatility, allowing the cooktop configuration to be adapted to suit changing menu or service requirements.

Key Features

• 900mm wide footprint with 805mm depth and 1130mm height
• Galvanised steel chassis construction
• Welded hob in 1.5mm 304 stainless steel with bull nose profile
• Splashback and hob sides in 1.2mm 304 stainless steel
• Oven sides and front panels constructed from 0.9mm 304 stainless steel
• Heavy-duty 150mm legs in 63mm diameter tube, fabricated from 1.2mm 304 stainless steel, with adjustable feet
• Two additional rollers for ease of movement and installation
• 12mm thick mild steel griddle plates with dedicated griddle splash guards in 2.5mm 304 stainless steel
• Three 3.6kW griddle elements mounted in heavy-duty welded element frames
• Six temperature settings plus a simmer setting on the griddle
• Element module and hob spill trays finished in vitreous enamel for straightforward cleaning
• Aluminised steel internal cooktop construction
• Griddle sections standard on right-hand side; available on left-hand side or centre to order or by conversion
• Optional hot plate elements featuring an 8mm machine-finished steel plate surface
• 2/1 GN convection oven with four-position racking
• 6.5kW oven heating elements
• 100W heavy-duty convection motor with 200mm diameter circulation fan
• Fully welded and vitreous enamelled oven liner
• Cast iron even-heat oven sole plate
• Heavy-duty easy-remove chrome wire rack supports
• Supplied with two chrome wire oven racks
• Welded-frame drop-down oven door with a heavy-duty spring hinge assembly; outer door panel in 0.9mm 304 stainless steel
• Press-formed vitreous enamelled inner door panel in 1.0mm steel
• High-density fibreglass oven insulation
• Temperature-controlled stainless steel door handle secured with cast metal handle mounts
• Heavy-duty reinforced control knobs
• Default colour is black; other colour options available
• Waldorf Bold series product

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
