Overview

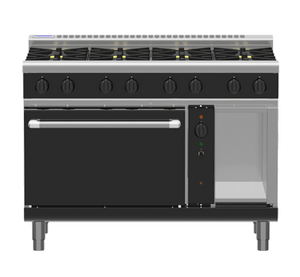

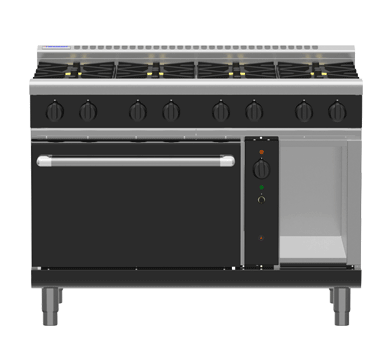

Waldorf Bold RNB8810GC 1200mm Gas Range Convection Oven

The Waldorf Bold RNB8810GC is a 1200mm commercial gas range convection oven designed for high-volume professional kitchens including restaurants, hotels, cafes, clubs and catering operations. Built in New Zealand from 304 stainless steel, this unit combines eight powerful 28MJ/hr open burners on the cooktop with a 2/1 GN gas convection oven below, plus a dedicated storage cabinet on the right-hand side, delivering an all-in-one cooking solution within a single 1200mm footprint.

Engineered as part of the Waldorf Bold Series, the RNB8810GC is built for continuous heavy-duty service. The fan-forced convection oven promotes even heat distribution, reduces cooking times and allows food to be cooked at lower temperatures for improved energy efficiency. Every detail, from the vitreous enamel-lined oven interior to the flame failure protection on all burners, reflects a focus on safety, performance and ease of daily maintenance.

Key Benefits

• Eight 28MJ/hr open burners deliver rapid heat-up and precise flame control across boiling, sauteing, frying and simmering tasks simultaneously, supporting high-output service periods.
• Fan-forced convection circulation ensures consistent baking and roasting results throughout the 2/1 GN oven cavity, reducing cooking times and enabling lower operating temperatures.
• Flame failure protection on every burner automatically cuts gas supply if a flame is extinguished, providing an important safety safeguard during busy service.
• Removable cast iron burners and vitreous enamel pot stands simplify cleaning and allow quick component access for servicing, reducing kitchen downtime.
• The vitreous enamel-lined oven interior resists grease build-up and is straightforward to wipe clean, keeping hygiene standards high with minimal effort.
• Adjustable feet and two additional rollers allow the unit to be levelled precisely on uneven floors and repositioned for cleaning or kitchen reconfiguration.
• The cool-touch stainless steel door handle and drop-down door with welded frame provide safe, ergonomic oven access during rapid service.
• Modular 1200mm Bold Series design integrates seamlessly into Waldorf suite configurations, allowing kitchens to expand their cooking line consistently.
• Available in the default black finish or custom colour options, with compatibility for both natural gas and LPG connections to suit different site requirements.

Key Features

• Eight-burner cooktop range with 8 x 28MJ/hr patented open burners, totalling 224MJ/hr combined output.
• 2/1 GN gas convection oven with heavy-duty motor and circulation fan for fan-forced even heat distribution.
• Cast iron sole plates inside the oven cavity for consistent base heat distribution across trays.
• Oven interior is fully welded and lined with vitreous enamel for durability and easy cleaning.
• Flame failure protection fitted to all burners for continuous operational safety.
• Removable heavy-duty cast iron burners and vitreous enamel pot stands for straightforward cleaning and servicing.
• Drop-down oven door with welded frame and cool-touch stainless steel handle.
• Heavy-duty reinforced control knobs rated for continuous commercial use.
• Storage cabinet located on the right-hand side of the unit.
• Adjustable feet plus two additional rollers for levelling and easy repositioning.
• Constructed in 304 stainless steel with a heavy-duty stainless steel finish throughout.
• Splashback included as standard.
• Accepts both natural gas and LPG with R 3/4 (BSP) male gas connection.
• Electrical supply required: 0.13kW, 0.6A, 1P+N+E, 230-240Vac, 50/60Hz for convection fan motor.
• Oven temperature range: 150-300°C (thermostatic control with analogue display); cooktop heat is variable.
• Four oven shelves included.
• Default colour is black; additional custom colour options are available.
• Manufactured in New Zealand; backed by a 24-month warranty.
• Dimensions: 1200mm W x 805mm D x 1130mm H; volume 1.36m3.
• Part of the Waldorf Bold Series, designed to integrate with other Bold Series suite components.
• Note: product images may show the RNLB8810G low-back version of the same model.

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 355.0
• Colour: Custom
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 224
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 4
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 8
• Power Rating: 0.13kW|0.6A|1P+N+E|230-240Vac|50/60Hz
• Temperature Control: Thermostatic
• Display Type: Analog
