Overview

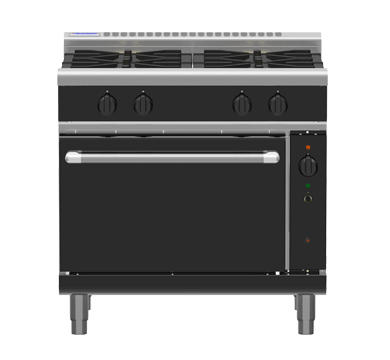

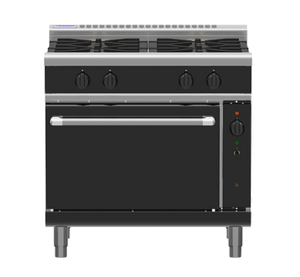

Waldorf RNB8910GC Bold 900mm Gas Range Convection Oven

The Waldorf RNB8910GC is a 900mm wide gas range convection oven from the Waldorf Bold Series, combining a four-burner open cooktop with a full 2/1 GN gas convection oven below. Built in New Zealand from 304 stainless steel, it is engineered to handle the demands of high-volume commercial kitchens, bakeries, restaurants and catering operations where consistent, reliable output is essential.

Four patented 28MJ/hr open burners deliver powerful cooktop performance, while the convection oven uses heavy-duty motors and circulation fans to achieve even heat distribution, reduced cooking times and the ability to cook at lower temperatures. Cast iron sole plates further promote uniform heat across the oven cavity, making this unit equally suited to baking, roasting and batch cooking across multiple trays.

Key Benefits

• Fan-forced convection circulation reduces cooking times and allows food to be cooked at lower temperatures, saving energy and improving throughput.
• Four high-output 28MJ/hr open burners provide intense, responsive cooktop heat for rapid cooking and searing.
• Full 2/1 GN oven capacity accommodates large gastronorm trays, supporting efficient batch cooking and high-volume service.
• Cast iron sole plates distribute oven heat evenly across the cavity, reducing hot spots and producing consistent results tray to tray.
• Flame failure protection on all burners automatically cuts the gas supply if a flame is extinguished, improving kitchen safety.
• Vitreous enamel oven lining and pot stands resist staining and are straightforward to wipe down, reducing cleaning time between services.
• Adjustable feet and two additional rollers allow the unit to be levelled precisely on uneven floors and repositioned without specialist equipment.
• Available in natural gas or LPG configurations with custom colour options beyond the default black finish, allowing the unit to suit different kitchen setups and branding requirements.

Key Features

• Four-burner cooktop range with 4 x 28MJ/hr open burners, each rated individually for high output performance.
• 2/1 GN gas convection oven with heavy-duty motor and circulation fan for even, consistent heat throughout the cavity.
• Cast iron sole plates inside the oven for uniform heat distribution and stable cooking temperatures.
• Flame failure protection fitted to all burners as a standard safety feature.
• Removable heavy-duty cast iron burners for easy cleaning and maintenance.
• Vitreous enamel pot stands that are removable and simple to clean.
• Oven lining is welded construction and finished with vitreous enamel for durability and ease of cleaning.
• Drop-down oven door with welded frame for robust, long-term operation.
• Cool touch stainless steel door handle for safe handling during service.
• Heavy-duty reinforced control knobs designed to withstand the rigours of continuous commercial use.
• Heavy-duty stainless steel exterior finish (304 stainless steel) for corrosion resistance and longevity.
• Adjustable feet and two additional rollers for levelling and repositioning.
• Splashback included as standard.
• Default colour is black; additional custom colour options are available.
• Compatible with natural gas and LPG; gas connection is R 3/4 (BSP) male.
• Thermostatic temperature control with analogue display; oven temperature range 150-300°C.
• Electrical supply required for fan motor: 0.13kW, 0.6A, 1P+N+E, 230-240Vac, 50/60Hz.
• Total burner output of 112MJ/hr across the cooktop.
• Manufactured in New Zealand.
• Part of the Waldorf Bold Series, with a low-back version (RNLB8910GC) also available.
• 2 oven shelves included as standard.
• Designed for straightforward cleaning, installation and servicing.

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 112
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 4
• Power Rating: 0.13kW|0.6A|1P+N+E|230-240Vac|50/60Hz
• Temperature Control: Thermostatic
• Display Type: Analog
