Overview

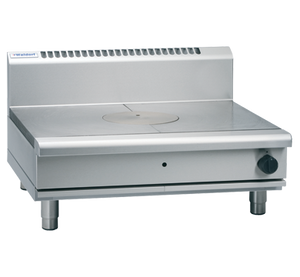

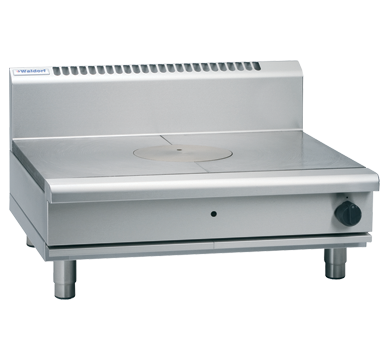

Waldorf RNL8100G-B 800 Series 900mm Gas Target Top Low Back Version Bench Model

The Waldorf RNL8100G-B is a 900mm gas target top bench model from the renowned 800 Series, engineered for demanding commercial kitchen environments. Built from 304 stainless steel and manufactured in New Zealand, this unit delivers focused, high-output heat via a 45MJ/hr dual ring cast iron burner, making it well suited to stockpot work, large vessel heating, and wok-style cooking applications.

Designed with practical kitchen operation in mind, the RNL8100G-B incorporates flame failure protection and a continuous pilot burner for safe, reliable ignition every time. A low back splashback configuration keeps the unit compact and easy to position against walls or within bench runs, while adjustable feet and two additional rollers allow straightforward repositioning and levelling on uneven floors.

Key Benefits

• 45MJ/hr dual ring cast iron burner delivers powerful, concentrated heat output ideal for large vessels and high-volume cooking tasks
• Flame failure protection automatically cuts gas supply if the flame extinguishes, reducing safety risks in a busy kitchen
• Continuous pilot burner ensures reliable, instant re-ignition without manual lighting delays during service
• Variable high-low temperature control with heavy-duty reinforced knobs gives chefs precise heat management and long-term durability under frequent adjustment
• Adjustable feet combined with two additional rollers make levelling on uneven floors straightforward and allow the unit to be repositioned without heavy lifting
• 304 stainless steel construction throughout provides a hygienic, corrosion-resistant surface that withstands the rigours of daily commercial use
• Compatible with both LPG and natural gas via a 3/4 BSP male connection, offering flexible installation across different kitchen setups
• Low back splashback design keeps the footprint practical while protecting adjacent surfaces from heat and splatter
• Designed for easy cleaning, installation, and servicing, minimising downtime and reducing maintenance effort

Key Features

• 900mm wide bench model from the Waldorf 800 Series
• 45MJ/hr dual ring cast iron burner
• Flame failure protection for enhanced operational safety
• Continuous pilot burner for consistent, reliable ignition
• Variable high-low gas control via heavy-duty reinforced control knobs
• Compatible with LPG and natural gas; R 3/4 (BSP) male gas connection
• Low back splashback included
• Adjustable feet plus 2 additional rollers for levelling and mobility
• Constructed from 304 stainless steel
• No undershelf
• Designed for straightforward cleaning, installation, and servicing
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 370
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 55
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable
• Fuel Type: Gas
• Number of Burners: 1
• Power Rating: 15.3 kW
• Temperature Control: Variable High-Low
