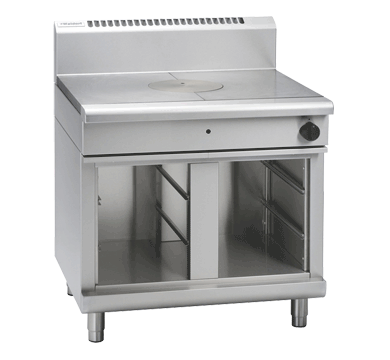

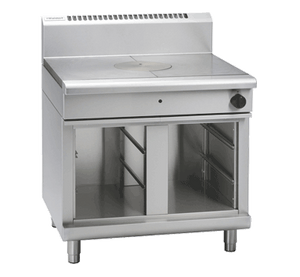

Waldorf RNL8100G-CB 800 Series 900mm Gas Target Top Low Back Version Cabinet Base

The Waldorf RNL8100G-CB is a 900mm gas target top cooking range from the Waldorf 800 Series, built on a cabinet base and designed for demanding commercial kitchen environments. The unit features a 45 MJ/hr dual ring cast iron burner with flame failure protection and a continuous pilot burner, delivering reliable, controlled heat output suitable for a wide range of cooking tasks.

Constructed from 304 stainless steel and manufactured in New Zealand, this low back version combines practical safety features with straightforward serviceability. Adjustable feet and two additional rollers make positioning and levelling straightforward, while the heavy-duty reinforced control knobs and cabinet door base ensure the unit holds up to the rigours of high-volume kitchen use.

Key Benefits

• Flame failure protection provides an important safety safeguard by cutting gas supply if the flame extinguishes unexpectedly.
• The continuous pilot burner enables quick, reliable ignition so kitchen staff can get cooking without delay.
• A 45 MJ/hr dual ring cast iron burner delivers concentrated, even heat ideal for large pots, woks and specialist target-top cookware.
• Adjustable feet combined with two additional rollers make it easy to level the unit accurately and reposition it during cleaning or servicing.
• Heavy-duty reinforced control knobs withstand repeated use in high-volume kitchens, reducing wear and maintenance costs.
• The cabinet base provides enclosed storage directly beneath the cooking surface, maximising useful space in the kitchen.
• Compatible with both natural gas and LPG, giving flexibility for different site configurations.
• Designed for easy cleaning, installation and servicing, helping to minimise kitchen downtime.

Key Features

• 900mm wide gas target top mounted on a cabinet base
• 45 MJ/hr dual ring cast iron burner
• Flame failure protection system for operational safety
• Continuous pilot burner for immediate ignition
• Heavy-duty reinforced control knobs
• Adjustable feet and 2 additional rollers for levelling and mobility
• Low back (splashback) design
• Cabinet door base configuration for enclosed under-bench storage
• 304 stainless steel construction throughout
• Compatible with natural gas and LPG; R 3/4 BSP male gas connection
• Variable high-low temperature control
• Designed for easy cleaning, installation and servicing
• Manufactured in New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 55
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Cabinet Door
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable
• Fuel Type: Gas
• Number of Burners: 1
• Power Rating: 15.3 kW
• Temperature Control: Variable High-Low
