Overview

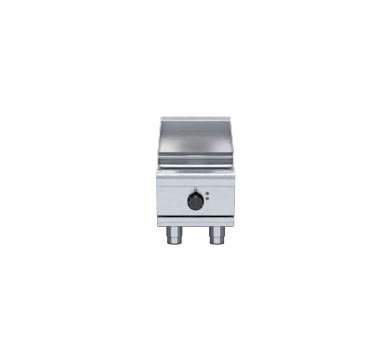

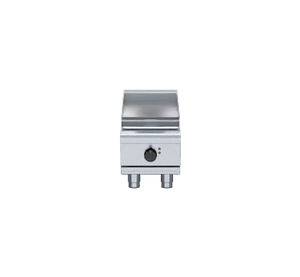

Waldorf RNL8203E-B 800 Series 300mm Electric Cooktop Low Back Version – Bench Model

The Waldorf RNL8203E-B is a compact 300mm electric cooktop from the premium 800 Series, designed for demanding commercial kitchen environments. Built in New Zealand from heavy-duty 304 stainless steel throughout, this bench-mounted unit features a 12mm thick mild steel griddle plate positioned on the right-hand side as standard, powered by a single 3.6kW element with a 50–320°C thermostat for precise, consistent heat control.

Engineered with serviceability and hygiene firmly in mind, the RNL8203E-B offers front-access servicing, hinge-up griddle and element sections, and removable vitreous enamelled hob spill trays for fast, thorough cleaning. Six temperature settings including a simmer setting, indicator lights for power and heating status, and heavy-duty reinforced control knobs make this cooktop intuitive to operate across long, busy service periods. Optional hot plate elements are available to expand cooking versatility.

Key Benefits

• Precise thermostat control between 50–320°C allows cooks to move seamlessly from gentle simmering to high-heat searing on the same unit.
• Six temperature settings including a dedicated simmer setting give operators reliable repeatability across varied menu items.
• Front-access servicing and hinge-up element and griddle sections minimise downtime during maintenance, keeping the kitchen running efficiently.
• Removable vitreous enamelled element module and hob spill trays simplify end-of-service cleaning and support strong hygiene standards.
• Compact 300mm footprint suits tight bench runs or supplementary cooking stations without sacrificing commercial-grade output.
• Adjustable bench legs (80–105mm height range) plus two additional rollers allow flexible positioning and levelling on uneven floors.
• Optional hot plate elements extend the unit's cooking capability without requiring a separate appliance.
• Heavy-duty reinforced control knobs with easy-view settings withstand constant use and remain legible throughout the working day.
• Indicator lights for both power and heating status on each element control give cooks at-a-glance confirmation of operational conditions.

Key Features

• 300mm griddle plate positioned on the right-hand side as standard
• 12mm thick mild steel griddle plate for even, sustained heat retention
• 1 x 3.6kW griddle element with 50–320°C thermostat per 300mm section
• Six temperature settings including a simmer setting
• Welded hob constructed from 1.5mm 304 stainless steel with bull nose edge
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• 2.5mm 304 stainless steel griddle splash guards
• Aluminised steel internal construction
• Vitreous enamelled element module and hob spill trays – removable for cleaning
• Hinge-up element and griddle sections for quick access
• All servicing accessible from the front of the unit
• Four 63mm diameter heavy-duty 1.2mm 304 stainless steel bench legs with adjustable feet
• Adjustable leg height from 80mm to 105mm
• Two additional rollers included for repositioning
• Large heat-resistant reinforced control knobs with easy-view settings on the knob face
• Energy regulator controls for radiant and hot plate elements
• Indicator lights for power and heating status on each element control
• Optional hot plate elements with machine-finished 8mm steel plate available
• Low back (splashback) configuration as standard on this model
• Bench mount model – supplied without undershelf
• Country of origin: New Zealand
• 24-month warranty

Specifications

• Width (mm): 300
• Depth (mm): 805
• Height (mm): 370
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24.0
• Temperature Range: 100-290°C
• Fuel Type: Electric
• Griddle Surface: Smooth
• Power Rating: 15A|1P+N+E|230-240Vac|3.6 kW|50/60Hz
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
