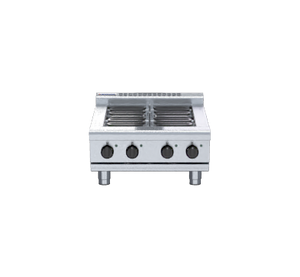

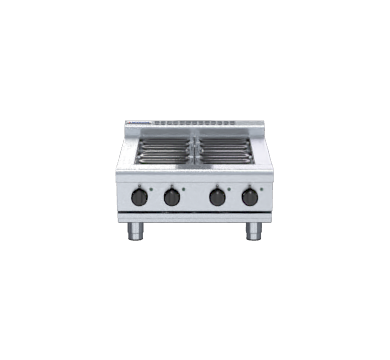

Waldorf RNL8400E-B 800 Series 600mm Electric Cooktop Low Back Version – Bench Model

The Waldorf RNL8400E-B is a 600mm wide bench-mounted electric cooktop from the heavy-duty 800 Series, purpose-built for demanding commercial kitchen environments. It features four 2.4kW open radiant elements set in heavy-duty welded frames, with six temperature settings including a simmer setting, giving chefs precise control across a wide cooking range.

Constructed from 304 stainless steel throughout, the unit includes a welded hob with a bull nose edge, vitreous enamelled element modules and hob spill trays, and front-access servicing for minimal downtime. Optional hot plate elements with machine-finished 8mm steel plate expand its versatility, making it a practical and durable centrepiece for any professional kitchen line.

Key Benefits

• Four independent 2.4kW radiant elements with six heat settings, including a simmer setting, allow simultaneous cooking of multiple dishes at precisely the right temperature.
• Vitreous enamelled element modules and hob spill trays contain spills and lift out easily, significantly reducing cleaning time between services.
• Hinge-up element sections and full front-of-unit access to all components mean servicing and maintenance can be completed quickly without pulling the unit away from the wall.
• Heavy-duty reinforced control knobs with easy-view settings on the knob face allow quick, reliable adjustments even in a fast-paced kitchen environment.
• Adjustable bench legs with feet that raise the unit between 80mm and 105mm, plus two additional rollers, make installation, repositioning and levelling straightforward.
• Optional hot plate elements with machine-finished 8mm steel plate provide an alternative cooking surface for searing, frying or holding, increasing the unit's operational flexibility.
• All-stainless external finish and aluminised steel internal construction deliver long-term durability and resistance to the heat and moisture typical of commercial cooking environments.
• Indicator lights for both power and heating on each element control give instant visual confirmation of element status, supporting safe and efficient kitchen operation.

Key Features

• Four 2.4kW open radiant elements mounted in heavy-duty welded element frames
• Six temperature settings per element, including a dedicated simmer setting
• Energy regulator controls for each radiant element
• Indicator lights for power and heating status on each individual element control
• Welded hob with 1.5mm 304 stainless steel bull nose edge
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• Vitreous enamelled element modules and hob spill trays – removable for easy cleaning
• Hinge-up element sections for access and servicing
• All parts accessible from the front of the unit
• Aluminised steel internal construction
• Large, heat-resistant reinforced control knobs with easy-view settings marked on the knob face
• Four 63mm diameter heavy-duty 1.2mm 304 stainless steel bench legs with adjustable feet
• Adjustable leg height from 80mm to 105mm
• Two additional rollers supplied for easier repositioning
• Low back (splashback) configuration as standard
• Bench model mounting (supplied as –B model)
• Optional hot plate elements with machine-finished 8mm steel plate
• Optional 12mm thick mild steel griddle plates with 2.5mm 304 stainless steel griddle splash guards
• Optional griddle sections with 50–320°C thermostat per 300mm section
• Manufactured in New Zealand
• 600mm wide footprint suits tight kitchen line configurations

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 370
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Electric
• Number of Burners: 2
• Power Rating: 20A/phase|2P+N+E|400-415Vac|50/60Hz|9.6 kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Variable High-Low
