Overview

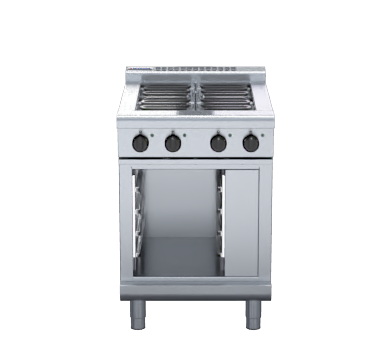

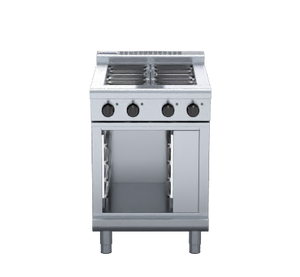

Waldorf RNL8400E-CB 800 Series 600mm Electric Cooktop Low Back Version Cabinet Base

The Waldorf RNL8400E-CB is a 600mm wide electric cooktop from the 800 Series, mounted on a fully enclosed cabinet base and designed for the rigours of high-volume commercial kitchens. It features four 2.4kW open radiant elements set in heavy-duty welded element frames within a vitreous enamelled element module, giving operators precise, consistent heat across the entire cooking surface with six temperature settings including a simmer position.

Construction throughout prioritises durability and hygiene, with a welded hob in 1.5mm 304 stainless steel, 1.2mm 304 stainless steel splashback and side panels, and a fully modular cabinet base finished in double-skin 0.9mm 304 stainless steel inside and out. Adjustable feet, two additional rollers, front-access servicing, and removable spill trays make day-to-day operation, cleaning, and maintenance straightforward in demanding kitchen environments.

Key Benefits

• Four independently controlled radiant elements deliver even, responsive heat across the full 600mm cooking surface, suited to simultaneous multi-pan cooking.
• Six temperature settings plus a dedicated simmer position give chefs precise control from gentle saucing to high-output frying.
• Indicator lights for power and heating on each element control allow staff to monitor the cooktop status at a glance, reducing energy waste.
• Vitreous enamelled element module and hob spill trays are fully removable, making thorough cleaning fast and reducing downtime between services.
• Hinge-up element sections and front-of-unit access to all components simplify routine servicing and minimise disruption to kitchen operations.
• Heavy-duty reinforced, heat-resistant control knobs with easy-view settings are built to withstand constant commercial use without fading or warping.
• Adjustable feet and two additional rollers make positioning and levelling straightforward during installation or when reconfiguring a kitchen suite.
• The fully modular cabinet base aligns with other 800 Series units for a matched suite finish, supporting consistent kitchen design and workflow.
• Optional hot plate elements expand versatility, allowing the unit to be configured for griddle-style cooking without requiring a separate appliance.

Key Features

• Four 2.4kW open radiant elements (9.6kW total output) in heavy-duty welded element frames
• Six temperature settings including a simmer setting, controlled via energy regulators
• Indicator lights for power and heating status on each individual element control
• Welded hob constructed from 1.5mm 304 stainless steel with bull nose edge
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• Vitreous enamelled element module and hob spill trays, fully removable for cleaning
• Hinge-up element sections for easy access and servicing
• All serviceable parts accessible from the front of the unit
• Heavy-duty reinforced, heat-resistant large control knobs with easy-view settings
• Cabinet base with double-skin 0.9mm 304 stainless steel interior and exterior construction
• Fully modular cabinet base design for matched 800 Series suite configuration
• 63mm diameter heavy-duty 1.2mm 304 stainless steel legs with adjustable feet
• Two additional rollers supplied for repositioning
• Aluminised steel internal construction
• Optional hot plate elements with machine-finished 8mm steel plate
• Optional GN 1/1 four-position racking kit for cabinet base
• Power supply: 400-415Vac, 50/60Hz, 20A/phase, 2P+N+E (415V 3 phase)
• Splashback included as standard
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Cabinet Door
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Electric
• Number of Burners: 2
• Power Rating: 20A/phase|2P+N+E|400-415Vac|50/60Hz|9.6 kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Variable High-Low
