Waldorf RNL8400G-CB 800 Series 600mm Gas Cooktop Low Back Version Cabinet Base

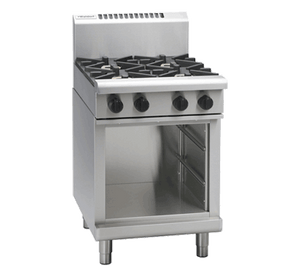

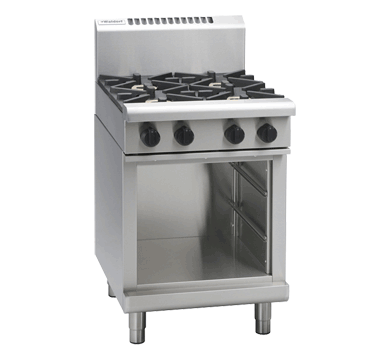

The Waldorf RNL8400G-CB is a 600mm wide, four-burner gas cooktop from the 800 Series, mounted on a cabinet base and designed for the demands of busy commercial kitchens. Each of the four open burners delivers 28MJ/hr, combining for a total output of 112MJ/hr (31.1kW), and every burner is protected by flame failure safety devices. The low back version integrates a splashback and sits on a cabinet base with door, constructed throughout in 304 stainless steel and manufactured in New Zealand.

Practical details make this unit straightforward to operate, clean and service. Vitreous enamel pot stands feature extended finger supports that allow cookware to slide smoothly between burners, while the cast iron burners themselves are fully removable for cleaning or replacement. Compatibility with hot top simmer plates and 300, 600 or 900mm griddle plates adds further versatility, and the unit accepts both natural gas and LPG through a 3/4 inch BSP male connection.

Key Benefits

• Four open burners each rated at 28MJ/hr provide fast, responsive heat for high-volume cooking services.
• Flame failure protection on every burner automatically cuts gas if a flame goes out, improving kitchen safety.
• Vitreous enamel pot stands with extended finger supports allow pots and pans to glide easily from burner to burner, reducing handling time.
• Removable cast iron burners simplify deep cleaning and make component replacement straightforward without specialist tools.
• Heavy-duty reinforced control knobs withstand repeated daily use in demanding kitchen environments.
• Adjustable feet combined with two additional rollers make levelling and repositioning the unit quick and convenient during installation or cleaning.
• Cabinet base with door provides enclosed underbench storage, keeping the work area organised.
• Compatible with hot top simmer plates and 300, 600 or 900mm griddle plates, allowing the cooking surface to be reconfigured as menu needs change.
• Dual fuel compatibility with natural gas and LPG gives flexibility across different site installations.

Key Features

• Four open burners, each rated at 28MJ/hr, total output 112MJ/hr (31.1kW)
• Flame failure protection fitted to all four burners
• Removable heavy-duty cast iron burners for easy cleaning and servicing
• Vitreous enamel pot stands with extended finger supports allowing smooth pan transfer between burners
• Heavy-duty reinforced control knobs for durability under continuous use
• Variable high-low temperature control on all burners
• Compatible with hot top simmer plates and 300mm, 600mm or 900mm griddle plates
• Heavy-duty 304 stainless steel construction throughout
• Low back splashback included
• Cabinet base with door providing enclosed underbench storage
• Adjustable feet and two additional rollers for levelling and mobility
• 3/4 inch BSP male gas connection, compatible with natural gas and LPG
• 600mm wide footprint suitable for modular 800 Series suite configurations
• Manufactured in New Zealand

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 112
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Cabinet Door
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 4
• Power Rating: 31.1 kW
• Temperature Control: Variable High-Low
