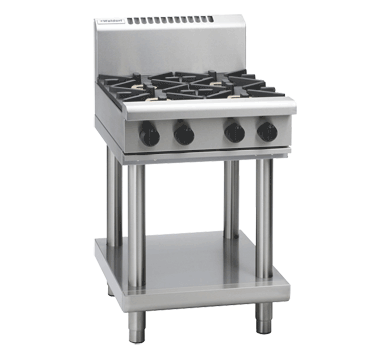

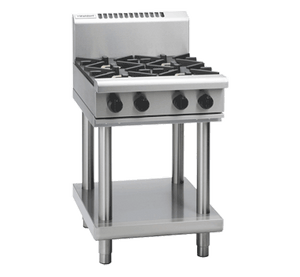

Waldorf RNL8400G-LS 800 Series 600mm Gas Cooktop Low Back Version – Leg Stand

The Waldorf RNL8400G-LS is a 600mm four-burner gas cooktop from the 800 Series, mounted on a leg stand for a complete, freestanding cooking solution suited to busy commercial kitchens. Constructed from 304 stainless steel and compatible with both natural gas and LPG, it delivers a total output of 112 MJ/h (4 x 28 MJ/h) through advanced open burners, combining high heat performance with straightforward everyday operation.

Designed for simplicity and durability, the RNL8400G-LS features heavy-duty cast iron burners, vitreous enamel pot stands with extended finger supports that allow cookware to slide smoothly between burners, and flame failure protection on every burner for added safety. The low back configuration, undershelf, adjustable feet, and two additional rollers make it practical to install, reposition, and maintain in demanding kitchen environments.

Key Benefits

• Four open burners each rated at 28 MJ/h provide powerful, responsive heat that can handle high-volume cooking demands during peak service.
• Flame failure protection on all burners automatically cuts gas supply if a flame goes out, improving safety for kitchen staff.
• Vitreous enamel pot stands with extended finger supports allow pots and pans to slide easily from burner to burner, streamlining workflow during service.
• Removable cast iron burners and pot stands simplify cleaning, reducing downtime between services.
• Adjustable feet combined with two additional rollers make positioning and levelling the unit straightforward, even on uneven kitchen floors.
• Heavy-duty reinforced control knobs withstand the rigours of continuous commercial use, maintaining precise variable high-low flame control.
• Compatible with both natural gas and LPG, offering installation flexibility across different kitchen setups.
• The included undershelf adds useful storage space beneath the cooktop, keeping the workstation organised.
• Manufactured in New Zealand from 304 stainless steel, the unit is built for long-term durability and resistance to corrosion in commercial kitchen conditions.

Key Features

• 4 x 28 MJ/h open burners, total output 112 MJ/h (31.1 kW)
• Heavy-duty removable cast iron burners for easy cleaning and replacement
• Vitreous enamel pot stands with extended finger supports for smooth pan movement between burners
• Flame failure protection fitted to all four burners
• Heavy-duty reinforced control knobs with variable high-low heat settings
• Freestanding leg stand configuration with low back version design
• Adjustable feet for levelling, plus 2 additional rollers for repositioning
• Undershelf included for additional storage
• Splashback included
• 304 stainless steel construction throughout
• Compatible with natural gas and LPG; R 3/4 (BSP) male gas connection
• Designed for easy cleaning, installation, and servicing
• Can accommodate hot top simmer plates or 300, 600, or 900mm griddle plates
• Manufactured in New Zealand

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 112
• Material: 304 Stainless Steel
• Undershelf: Yes
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 4
• Power Rating: 31.1 kW
• Temperature Control: Variable High-Low
