Overview

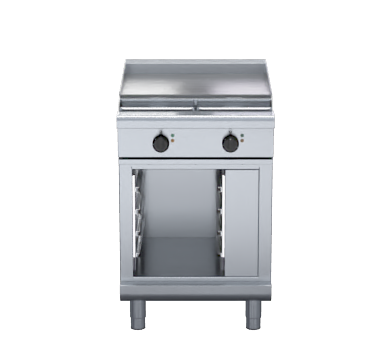

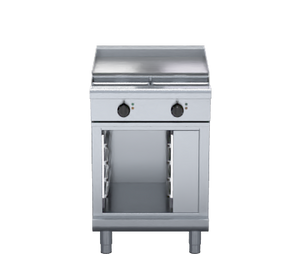

Waldorf RNL8406E-CB 800 Series 600mm Electric Cooktop with Integrated Griddle, Low Back Configuration, Cabinet Base

The Waldorf RNL8406E-CB belongs to the heavy-duty 800 Series range and combines a 600mm electric cooktop with an integrated griddle section, all mounted on a fully enclosed cabinet base. The unit is built entirely from 304 stainless steel, with a precision-welded hob featuring a bull nose profile formed from 1.5mm sheet, splashback and side panels in 1.2mm 304 stainless steel, and a 12mm thick mild steel griddle plate, giving the construction the structural integrity needed for sustained high-volume commercial kitchen operation. Splash guards around the griddle are fabricated from 2.5mm 304 stainless steel, and aluminised steel is used for internal construction throughout.

Each 300mm griddle section is governed by an independent thermostat ranging from 50 to 320 degrees Celsius, with six heat settings that include a dedicated simmer position. The cabinet base is fully modular to suit suite configurations, incorporates a double-skin construction where both the interior and exterior are clad in 0.9mm 304 stainless steel, and is designed so that every component can be reached from the front without pulling the unit from the line. This low back (splashback) version is manufactured in New Zealand and carries a 24-month warranty.

Key Benefits

• Independent thermostatic control on each 300mm griddle section lets operators hold different cooking temperatures at the same time, supporting greater menu flexibility during service.
• Six heat settings, including a dedicated simmer position, give precise control over both delicate low-heat tasks and high-output cooking on the same surface.
• Element and griddle sections that hinge upward, combined with front-access servicing, reduce maintenance time and allow the unit to stay in position on the line during repairs.
• Element modules and hob spill trays finished in vitreous enamel lift out for cleaning, making end-of-service hygiene routines quicker and more thorough.
• Adjustable feet and two supplementary rollers make levelling during installation and repositioning during kitchen reconfiguration straightforward tasks.
• A fully modular cabinet base clad on both faces with 0.9mm 304 stainless steel integrates neatly into suite arrangements and delivers a durable, hygienic enclosed storage space.
• Reinforced, heat-resistant control knobs with clearly marked settings, plus individual indicator lights for power and heating status on each element control, support fast and accurate operation during peak service.
• Optional hot plate elements and an optional GN 1/1 four-position racking kit for the cabinet base allow the unit to be configured to specific kitchen needs without requiring replacement equipment.

Key Features

• 600mm electric cooktop with integrated griddle section mounted on a fully enclosed cabinet base, low back (splashback) configuration
• Two 3.6kW griddle elements providing a combined output of 7.2kW
• 12mm thick mild steel griddle plates for even, sustained heat retention
• Independent thermostat per 300mm griddle section, adjustable from 50 to 320 degrees Celsius
• Six temperature settings including a simmer setting
• 2.4kW open radiant elements housed in heavy-duty welded element frames
• Element modules and hob spill trays finished in vitreous enamel, removable for cleaning
• Element and griddle sections that hinge upward for straightforward access
• Precision-welded hob with a bull nose edge formed from 1.5mm 304 stainless steel
• Splashback and side panels fabricated from 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• Griddle splash guards constructed from 2.5mm 304 stainless steel
• Aluminised steel internal construction
• All external surfaces in an easy-clean stainless steel finish
• Large heat-resistant reinforced control knobs with easy-view settings
• Indicator lights for power and heating status on each element control
• Radiant and hot plate elements with energy regulator controls
• Cabinet base with a double-skin configuration: interior and exterior both clad in 0.9mm 304 stainless steel
• Fully modular cabinet base for suite matching
• Legs of 63mm diameter, formed from 1.2mm 304 stainless steel, rated heavy-duty, with adjustable feet
• Two additional rollers to assist with repositioning
• All components accessible from the front of the unit for servicing
• Optional hot plate elements available
• Optional GN 1/1 four-position racking kit for the cabinet base
• Country of origin: New Zealand
• 24-month warranty

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Cabinet Door
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 100-290°C
• Fuel Type: Electric
• Griddle Surface: Smooth
• Power Rating: 1P+N+E|230-240Vac|30A|50/60Hz|7.2 kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
