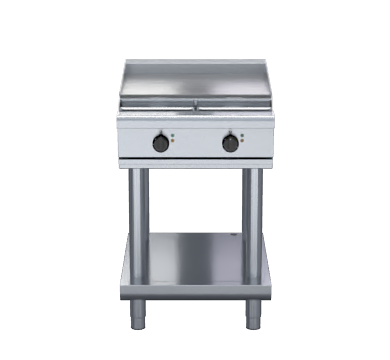

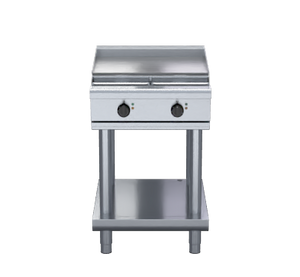

Waldorf RNL8406E-LS 800 Series 600mm Electric Cooktop Low Back Version Leg Stand

The Waldorf RNL8406E-LS is a 600mm electric cooktop from the 800 Series, supplied on a matching leg stand and designed for demanding commercial kitchen environments. The unit features a 600mm griddle section powered by two 3.6kW elements, each 300mm griddle section independently controlled by a 50–320°C thermostat, alongside 2.4kW open radiant elements housed in heavy-duty welded frames. Construction throughout uses 304 stainless steel, with a 1.5mm bull-nose welded hob, 1.2mm splashback and side panels, and vitreous enamelled element modules and hob spill trays for long-term durability.

The leg stand is fully modular for a matched suite finish, featuring 63mm diameter heavy-duty 1.2mm 304 stainless steel legs with adjustable feet and two additional rollers for easy repositioning on the kitchen floor. A framed stand shelf with 0.9mm 304 stainless steel finish adds useful underbench storage. Servicing and cleaning are made straightforward by hinge-up element and griddle sections, removable vitreous enamelled spill trays, and full front access to all internal components. Optional hot plate elements with machine-finished 8mm steel plate are available as an upgrade.

Key Benefits

• Independent 50–320°C thermostats per 300mm griddle section allow precise, simultaneous cooking at different temperatures across the one unit.
• Six temperature settings including a simmer setting provide versatile heat control for a wide range of menu items.
• Hinge-up element and griddle sections combined with front-only service access minimise kitchen downtime during cleaning and maintenance.
• Removable vitreous enamelled element modules and hob spill trays make routine clean-downs fast and thorough.
• Adjustable feet and two additional rollers simplify installation positioning and allow the unit to be moved for deep cleaning or reconfiguration.
• Fully modular leg stand connects directly to the cooktop and pairs with other 800 Series units for a cohesive, matched suite layout.
• Quick-assembly leg stand design requires no tools, reducing setup time on site.
• Optional hot plate elements with machine-finished 8mm steel plate extend cooking versatility without requiring a separate appliance.
• Heavy-duty reinforced, heat-resistant control knobs with easy-view settings withstand continuous high-use conditions in busy service environments.

Key Features

• 600mm griddle section powered by 2 x 3.6kW griddle elements, with 12mm thick mild steel griddle plates
• 50–320°C thermostat control per 300mm griddle section for independent zone temperature management
• 2.4kW open radiant elements mounted in heavy-duty welded element frames
• Vitreous enamelled element module and hob spill trays, removable for cleaning
• Six temperature settings including a dedicated simmer setting
• Welded hob constructed from 1.5mm 304 stainless steel with bull-nose profile
• Splashback and side panels in 1.2mm 304 stainless steel; front panels in 0.9mm 304 stainless steel
• 2.5mm 304 stainless steel griddle splash guards
• Aluminised steel internal construction
• Indicator lights for power and heating status on each element control
• Large heat-resistant reinforced control knobs with easy-view control settings
• Energy regulator controls for both radiant and hot plate elements
• Hinge-up element and griddle sections for full front-of-unit service access
• Leg stand with 63mm diameter heavy-duty 1.2mm 304 stainless steel legs
• Adjustable feet and 2 additional rollers for levelling and repositioning
• Framed stand shelf finished in 0.9mm 304 stainless steel
• Fully modular leg stand with framed top connection to cooktop; no-tools quick assembly
• Modular design compatible with 800 Series suite for matched kitchen fit-out
• Optional hot plate elements with machine-finished 8mm steel plate (sold separately)
• All external surfaces in easy-clean stainless steel finish

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
