Overview

Waldorf RNL8416G 800 Series 600mm Gas Range Static Oven Low Back Version

The Waldorf RNL8416G is part of the renowned 800 Series, combining a 600mm gas griddle cooktop with a 1/1 GN gas static oven in a compact low back configuration. Manufactured in New Zealand from 304 stainless steel, it is engineered to handle the rigorous demands of busy commercial kitchens, delivering consistent, reliable performance across both the cooktop and oven cavity.

The cooktop is powered by two 20MJ/hr griddle burners with a smooth griddle surface, while the oven operates thermostatically across a 150 to 300 degree Celsius range. Thoughtful design details including flame failure protection on all burners, a vitreous enamel-lined welded oven cavity, cast iron sole plates for even heat distribution, and a cool touch door handle make this unit practical for daily high-volume use.

Key Benefits

• Flame failure protection on all burners enhances safety and provides peace of mind during continuous operation.
• Vitreous enamel-lined welded oven cavity retains and distributes heat evenly for consistent baking and roasting results.
• Thermostatic oven temperature control between 150 and 300 degrees Celsius allows precise cooking across a wide range of menu items.
• Smooth 600mm griddle surface with dual 20MJ/hr burners delivers substantial cooking power for high-volume service.
• Removable cast iron burners and vitreous enamel pot stands simplify cleaning and reduce downtime between services.
• Adjustable feet and two additional rollers make positioning and levelling straightforward during installation or kitchen reconfiguration.
• Cool touch stainless steel door handle improves operator safety and comfort during busy service periods.
• Compatible with both natural gas and LPG connections, offering flexibility across different venue setups.

Key Features

• 600mm gas griddle cooktop with smooth griddle surface
• 1/1 GN capacity gas static oven with thermostatic control (150 to 300 degrees Celsius)
• Two 20MJ/hr griddle burners
• Flame failure protection on all burners
• Removable heavy-duty cast iron burners
• Vitreous enamel pot stands
• Oven cavity is welded and lined with vitreous enamel for even heat retention and easy cleaning
• Drop down oven door with welded frame construction
• Cool touch stainless steel door handle
• Heavy-duty reinforced control knobs with analogue display
• Heavy-duty stainless steel exterior finish (304 stainless steel)
• Low back version design
• Adjustable feet plus two additional rollers for easy installation and repositioning
• Two oven shelves included
• Splashback included
• Gas connection: R 3/4 BSP male
• Compatible with natural gas and LPG
• Manufactured in New Zealand

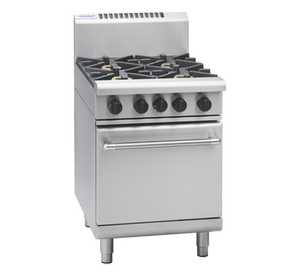

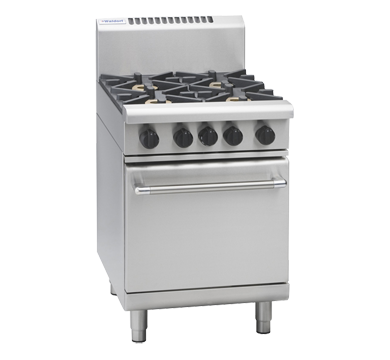

• Image shown in supplier materials represents model RN8410G

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas
• Number of Burners: 4
• Griddle Surface: Smooth
• Temperature Control: Thermostatic
• Display Type: Analog
