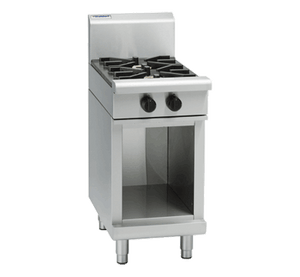

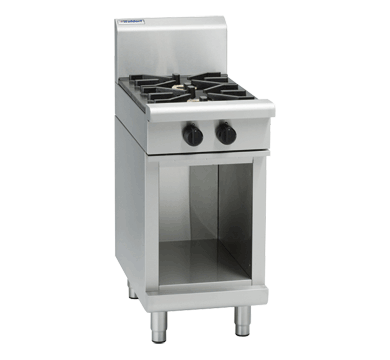

Waldorf RNL8450G-CB 800 Series 450mm Gas Cooktop Low Back Version Cabinet Base

The Waldorf RNL8450G-CB is a compact 450mm wide gas cooktop from the renowned 800 Series, mounted on a cabinet base and designed for demanding commercial kitchen environments. Featuring two open burners each rated at 28MJ/hr, this unit delivers responsive, high-output cooking performance with precise variable high-low temperature control, and accepts both natural gas and LPG connections via a 3/4 BSP male fitting.

Constructed from 304 stainless steel and manufactured in New Zealand, the RNL8450G-CB combines durability with practical serviceability. The cabinet base provides enclosed under-bench storage, while the low back configuration suits installations where clearance above the unit is a consideration. Pots and pans slide effortlessly between burners thanks to the extended finger supports on the vitreous enamel pot stands, making this cooktop a highly efficient workhorse for busy service operations.

Key Benefits

• Two 28MJ/hr open burners deliver powerful, responsive heat output suitable for high-volume commercial cooking.
• Flame failure protection on all burners automatically cuts gas supply if a flame extinguishes, improving kitchen safety.
• Vitreous enamel pot stands with extended finger supports allow cookware to glide smoothly from burner to burner, reducing handling time during service.
• Variable high-low temperature control on each burner gives chefs precise heat management across a wide cooking range.
• Removable cast iron burners and pot stands simplify routine cleaning and maintenance, minimising downtime.
• Adjustable feet combined with two additional rollers make levelling straightforward and allow the unit to be repositioned when needed.
• Compatible with hot top simmer plates and 300, 600 or 900mm griddle plates, expanding cooking versatility without changing the base unit.
• Heavy-duty reinforced control knobs withstand the rigours of continuous commercial use.
• Enclosed cabinet base door provides convenient on-site storage for small equipment and keeps the work area organised.

Key Features

• 450mm wide, 2-burner gas cooktop on cabinet base
• 2 x 28MJ/hr open burners, total output 56MJ/hr (15.6kW)
• Flame failure protection on all burners
• Removable heavy-duty cast iron burners
• Vitreous enamel pot stands with extended finger supports for easy pan transfer between burners
• Variable high-low control on each burner
• Heavy-duty reinforced control knobs
• 304 stainless steel construction throughout
• Low back (splashback) configuration
• Cabinet base with door
• Accepts natural gas or LPG; gas connection R 3/4 (BSP) male
• Compatible with hot top simmer plates and 300, 600 or 900mm griddle plates
• Adjustable feet and 2 additional rollers for levelling and repositioning
• Designed for easy cleaning, installation and servicing
• Manufactured in New Zealand
• Packed weight 108kg

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 56
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Cabinet Door
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 2
• Power Rating: 15.6 kW
• Temperature Control: Variable High-Low
