Overview

Waldorf RNL8510GC 800 Series 750mm Gas Range Convection Oven Low Back Version

The Waldorf RNL8510GC is a 750mm wide gas range from the renowned 800 Series, combining a four-burner open cooktop with a 1/1 GN gas convection oven in a low back configuration purpose-built for demanding commercial kitchens. Manufactured in New Zealand from 304 stainless steel, it delivers patented 28MJ/hr open burners up top and a fan-forced convection oven below, providing serious cooking power across both cooking zones simultaneously.

The convection oven features a heavy-duty motor and circulation fan for reduced cooking times and lower operating temperatures, with a welded vitreous enamel-lined cavity and cast iron sole plate ensuring even, consistent heat distribution. Practical design details throughout, including flame failure protection on every burner, cool touch door handle, adjustable feet with additional rollers, and removable cast iron burner components, make this range as easy to clean and service as it is to operate through a busy service period.

Key Benefits

• Fan-forced convection circulation reduces cooking times and allows lower oven temperatures, improving energy efficiency and food quality consistency.
• Four patented 28MJ/hr open burners deliver high-output cooktop performance, handling multiple pots and pans simultaneously during peak service.
• Flame failure protection on all burners automatically cuts gas flow if a flame is extinguished, providing an essential safety safeguard in a busy kitchen environment.
• 1/1 GN oven capacity accommodates standard gastronorm trays, streamlining batch cooking, roasting and baking workflows.
• Cast iron sole plate in the oven ensures even base heat distribution, reducing hot spots and improving results for baked goods and roasts.
• Vitreous enamel oven lining and pot stands resist staining and make post-service cleaning faster and more thorough.
• Adjustable feet combined with two additional rollers allow precise levelling during installation and straightforward repositioning for cleaning or servicing.
• Accepts both natural gas and LPG supply, giving operators flexibility across different site configurations.

Key Features

• Four-burner open cooktop with four individually rated 28MJ/hr patented burners
• 1/1 GN capacity gas convection oven with thermostatic temperature control ranging from 150°C to 300°C
• Heavy-duty motor and circulation fan in the convection oven for uniform heat distribution
• Cast iron sole plate in the oven cavity for even base heat
• Welded oven cavity lined with vitreous enamel for durability and easy cleaning
• Flame failure protection fitted to all burners as standard
• Removable heavy-duty cast iron burners for straightforward cleaning and maintenance
• Vitreous enamel pot stands, removable for cleaning
• Drop-down oven door with welded frame construction
• Cool touch stainless steel door handle
• Heavy-duty reinforced control knobs for long-term reliability under constant use
• Splashback included as standard
• Adjustable feet plus two additional rollers for levelling and repositioning
• Constructed from 304 stainless steel throughout
• Low back configuration for flexible kitchen installation
• Compatible with natural gas and LPG; R 3/4 BSP male gas connection
• Electrical supply required for convection fan: 0.13kW, 0.6A, 1P+N+E, 230-240Vac, 50/60Hz
• Manufactured in New Zealand

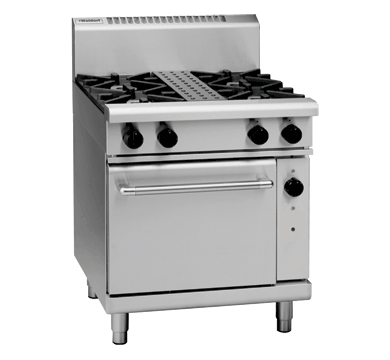

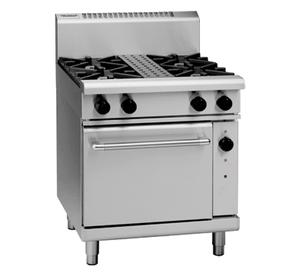

• Image shown in supplier materials represents standard back version RN8510GC; this listing is the low back variant

Specifications

• Width (mm): 750
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 112
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 4
• Power Rating: 0.13kW|0.6A|1P+N+E|230-240Vac|50/60Hz
• Temperature Control: Thermostatic
• Display Type: Analog
