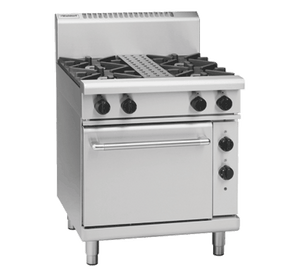

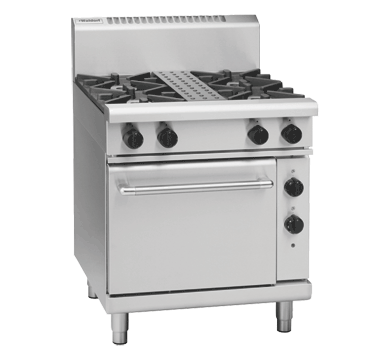

Waldorf RNL8510GE 800 Series 750mm Gas Range Electric Static Oven Low Back Version

The Waldorf RNL8510GE is a 750mm wide commercial range from the renowned 800 Series, combining a four-burner gas cooktop with a 1/1 GN electric static oven in a low back configuration. Constructed from heavy-duty 304 stainless steel and manufactured in New Zealand, it is engineered to withstand the rigours of continuous commercial kitchen service while delivering consistent, reliable cooking results across both cooking zones.

The cooktop features four patented 28MJ/hr open burners with flame failure protection and removable cast iron burners seated on vitreous enamel pot stands, offering precise heat control and straightforward cleaning. Below, the electric static oven is lined with welded vitreous enamel for even heat retention and ease of maintenance, with a thermostatic temperature range of 150 to 300°C and a drop-down door fitted with a cool-touch stainless steel handle for safe, practical access during busy service periods.

Key Benefits

• Four high-output 28MJ/hr open burners deliver powerful, responsive heat for rapid cooking and reduced service times on the cooktop
• Flame failure protection on every burner automatically cuts gas supply if a flame is extinguished, improving safety in a busy kitchen environment
• The 1/1 GN electric static oven provides consistent, even heat across the full oven cavity, ideal for reliable baking and roasting with predictable results
• Vitreous enamel oven lining and vitreous enamel pot stands resist staining and are simple to wipe down, reducing cleaning time between services
• Removable cast iron burners and pot stands allow quick disassembly for thorough cleaning without specialist tools
• Adjustable feet combined with two additional rollers make levelling straightforward during installation and allow repositioning on the kitchen floor as needed
• Cool-touch stainless steel door handle and a welded drop-down door frame protect staff from burns and ensure long-term structural durability
• Heavy-duty reinforced control knobs withstand constant daily use and provide positive, accurate adjustment of both cooktop and oven settings
• Designed for easy cleaning, installation and servicing, minimising downtime and reducing the total cost of ownership over the unit's working life

Key Features

• 750mm wide low back configuration within the Waldorf 800 Series range
• Four-burner gas cooktop with four x 28MJ/hr patented open burners, total cooktop output 112MJ/hr
• Flame failure protection fitted to all four burners as standard
• Removable heavy-duty cast iron burners for easy cleaning and replacement
• Vitreous enamel pot stands provide a durable, cleanable surface around each burner
• 1/1 GN capacity electric static oven suitable for full-size gastronorm trays
• Oven cavity welded and lined with vitreous enamel for even heat distribution and simple maintenance
• Thermostatic oven temperature control ranging from 150°C to 300°C
• Drop-down oven door with welded frame for structural rigidity and unobstructed access
• Cool-touch stainless steel oven door handle for safe operation during service
• Heavy-duty reinforced control knobs designed for long-term reliability under frequent use
• Constructed from heavy-duty 304 stainless steel throughout
• Adjustable feet plus two additional rollers for straightforward levelling and repositioning
• Two oven shelves included as standard
• Integrated splashback included
• Compatible with both natural gas and LPG; gas connection R 3/4 (BSP) male
• Electrical supply: 415V, 1 phase connection, 5.5kW power rating
• Analog display with thermostatic temperature control
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 750
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 112
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 4
• Power Rating: 1 phase connection|5.5kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
