Overview

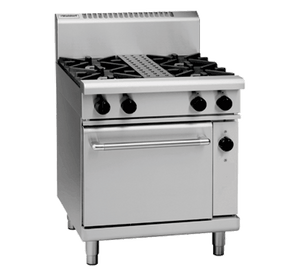

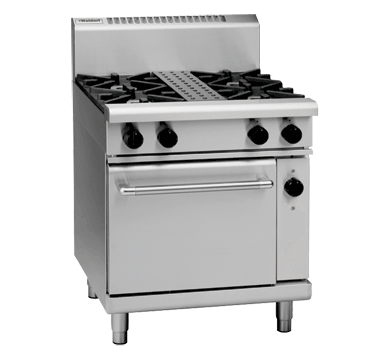

Waldorf RNL8510GEC 800 Series 750mm Gas Range Electric Convection Oven Low Back Version

The Waldorf RNL8510GEC is part of the respected 800 Series range, combining a four-burner gas cooktop with a 1/1 GN electric convection oven in a compact 750mm-wide low back configuration. Designed and built in New Zealand to handle the rigours of busy commercial kitchens, the unit pairs patented 28MJ open burners up top with a fan-forced electric convection oven below, delivering lifted performance across both cooking zones.

Heavy-duty construction throughout — from removable cast iron burners and vitreous enamel pot stands to a welded, vitreous enamel-lined oven cavity — ensures long service life and straightforward cleaning. Practical details such as adjustable feet, two additional rollers, cool touch door handle and reinforced control knobs make daily operation and repositioning easier in demanding kitchen environments.

Key Benefits

• Fan-forced convection circulation enables faster, more even cooking at lower temperatures, reducing energy use and improving throughput.
• Four independent 28MJ open burners give chefs precise, high-output heat control across the full cooktop surface.
• Flame failure protection on every burner automatically cuts gas flow if a flame is extinguished, improving kitchen safety.
• 1/1 GN oven capacity accommodates full gastronorm trays, streamlining batch cooking and reducing handling time.
• Vitreous enamel oven lining and pot stands resist staining and are straightforward to wipe clean, keeping maintenance quick between services.
• Removable cast iron burners and pot stands simplify deep cleaning and component replacement without specialist tools.
• Adjustable feet and two additional rollers allow the unit to be levelled precisely and repositioned on the kitchen floor with minimal effort.
• Low back design suits installations where overhead clearance or pass-through sightlines are a priority without sacrificing cooking capacity.

Key Features

• 750mm wide low back configuration — part of the Waldorf 800 Series
• Four-burner gas cooktop with four patented 28MJ/hr open burners (total 112MJ/hr output)
• Flame failure protection fitted to all four burners
• Removable heavy-duty cast iron burners for easy cleaning and serviceability
• Vitreous enamel pot stands, removable for thorough cleaning
• 1/1 GN electric convection oven with heavy-duty motor and circulation fan
• Oven temperature range 150–300°C with thermostatic control
• Welded oven cavity lined with vitreous enamel for durability and easy cleaning
• Drop-down oven door with welded frame construction
• Cool touch stainless steel door handle for safe operation during service
• Heavy-duty reinforced control knobs for long-term reliability under frequent use
• Adjustable feet plus two additional rollers for levelling and repositioning
• 304 stainless steel exterior finish throughout
• Splashback included
• Accepts natural gas or LPG with R 3/4 (BSP) male gas connection
• Electrical supply: 415V, 3-phase, 5.6kW power rating
• Designed and manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 750
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 112
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 4
• Power Rating: 1 phase connection|5.6kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
