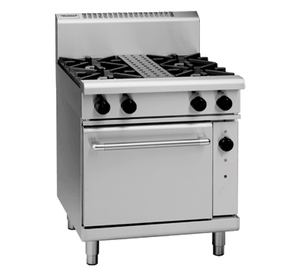

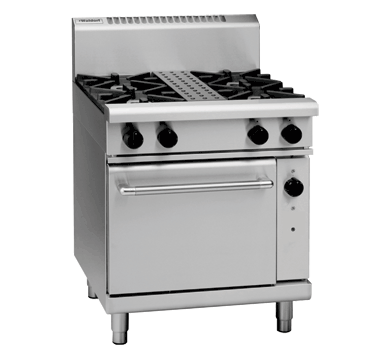

Waldorf RNL8513GC 800 Series 750mm Gas Range Convection Oven Low Back Version

The Waldorf RNL8513GC is part of the renowned 800 Series and combines a 2-burner gas cooktop with a 300mm griddle and a 1/1 GN gas convection oven in a compact 750mm-wide low back configuration. Patented 28MJ/hr open burners deliver exceptional cooking power up top, while the heavy-duty motor and circulation fan in the convection oven enable faster, more even cooking at reduced temperatures across a full range of baking and roasting applications.

Designed for the rigours of busy commercial kitchens, the RNL8513GC is built with a heavy-duty stainless steel finish, welded vitreous enamel oven lining, and removable cast iron burners for straightforward cleaning and servicing. Flame failure protection on all burners provides essential safety, and practical details such as adjustable feet, two additional rollers, and a cool touch door handle make daily operation and positioning effortless.

Key Benefits

• Fan-forced convection delivers consistent, even heat throughout the oven cavity, reducing cooking times and allowing lower operating temperatures for better results across batch baking and roasting.
• Patented 28MJ/hr open burners provide high-output cooking power, giving chefs the performance needed to handle demanding service periods.
• Integrated 300mm griddle with a dedicated 20MJ/hr burner expands cooking versatility, allowing simultaneous grilling and rangetop cooking from a single unit.
• Flame failure protection on every burner automatically cuts the gas supply if a flame is extinguished, supporting kitchen safety compliance.
• Vitreous enamel oven lining and removable cast iron burner components simplify cleaning and help maintain hygiene standards with minimal effort.
• Adjustable feet and two additional rollers allow easy repositioning during cleaning or kitchen reconfiguration, reducing downtime.
• Heavy-duty reinforced control knobs and a drop-down oven door with welded frame are built to withstand continuous commercial use.
• 1/1 GN oven capacity ensures compatibility with standard gastronorm cookware, maximising flexibility for large-batch cooking operations.

Key Features

• 2-burner gas cooktop range with 300mm griddle in a 750mm wide low back format
• 1/1 GN gas convection oven with heavy-duty motor and circulation fan
• 2 x patented 28MJ/hr open cooktop burners
• 1 x 20MJ/hr dedicated griddle burner
• Griddle positioned on the right-hand side as standard
• Flame failure protection on all burners
• Removable heavy-duty cast iron burners for easy cleaning and servicing
• Vitreous enamel pot stands
• Oven lining is welded and finished with vitreous enamel for durability and easy maintenance
• Cast iron sole plates in the oven for even heat distribution
• Drop-down oven door with welded frame for robust, long-term performance
• Cool touch stainless steel door handle for safe handling during service
• Heavy-duty reinforced control knobs
• Heavy-duty stainless steel exterior finish throughout
• Adjustable feet plus 2 additional rollers for flexible positioning
• Designed for easy cleaning, installation and servicing

Specifications

• Width (mm): 750
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
