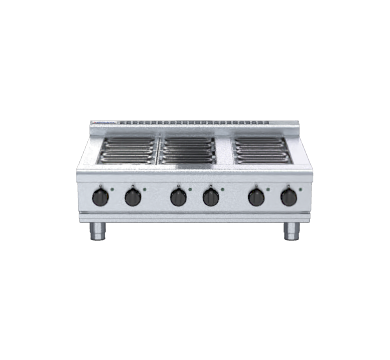

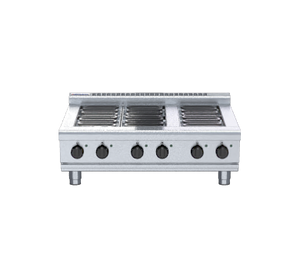

Waldorf RNL8600E-B 800 Series 900mm Electric Cooktop Low Back Version – Bench Model

The Waldorf RNL8600E-B is a 900mm wide, six-element electric cooktop from the heavy-duty 800 Series, designed specifically for high-volume commercial kitchens. Six 2.4kW open radiant elements deliver a combined output of 14.4kW across six independently controlled cooking zones, with each zone offering six temperature settings plus a simmer setting for precise heat management across a full service period.

Constructed from 304 stainless steel throughout, the bench model ships with four heavy-duty adjustable legs and two additional rollers for easy repositioning. Vitreous enamelled element modules and hob spill trays simplify cleaning, while hinge-up element sections and full front-access servicing minimise downtime. Optional hot plate elements provide additional cooking versatility, and the unit is manufactured in New Zealand and backed by a 24-month warranty.

Key Benefits

• Six independently controlled 2.4kW radiant elements allow simultaneous cooking at different heat levels, maximising output during peak service.
• Six temperature settings per element plus a dedicated simmer setting give chefs precise control from gentle reductions through to high-heat searing.
• Vitreous enamelled element modules and removable hob spill trays make post-service cleaning fast and thorough.
• Hinge-up element sections and complete front-of-unit access to all components streamline routine maintenance and reduce service call time.
• Adjustable bench legs (80–105mm height range) and two additional rollers allow the unit to be levelled precisely and repositioned without heavy lifting.
• Heavy-duty reinforced control knobs with easy-view settings withstand the rigours of continuous commercial use and reduce operator error.
• Optional hot plate elements with machine-finished 8mm steel plate expand the cooktop's versatility to suit a wider menu range.
• All-304-stainless-steel external finish is hygienic, corrosion-resistant, and easy to wipe down between services.
• Indicator lights for power and heating on each element control let staff monitor zone status at a glance, improving kitchen safety and efficiency.

Key Features

• Six 2.4kW open radiant elements with energy regulator controls, total output 14.4kW
• Six temperature settings per element including a simmer setting
• Welded hob constructed from 1.5mm 304 stainless steel with bull nose edge
• Splashback and side panels in 1.2mm 304 stainless steel; front panels in 0.9mm 304 stainless steel
• Aluminised steel internal construction
• Vitreous enamelled element module and hob spill trays – removable for cleaning
• Hinge-up element sections for easy access and servicing
• All components accessible from the front of the unit
• Large heat-resistant reinforced control knobs with easy-view settings
• Individual power and heating indicator lights for each element control
• Four 63mm diameter heavy-duty 1.2mm 304 stainless steel bench legs with adjustable feet
• Adjustable leg height range 80–105mm
• Two additional rollers supplied for repositioning
• Optional hot plate elements with machine-finished 8mm steel plate
• Low back (splashback) configuration
• 3-phase electrical supply: 400–415V AC, 20A per phase, 3P+N+E, 50/60Hz
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 370
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Electric
• Number of Burners: 6
• Power Rating: 14.4 kW|20A/phase|3P+N+E|400-415Vac|50/60Hz
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Variable High-Low
