Overview

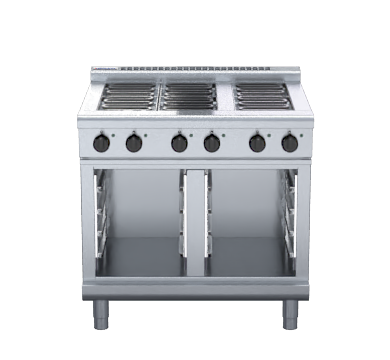

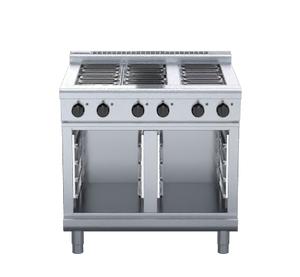

Waldorf RNL8600E-CB 800 Series 900mm Electric Cooktop Low Back – Cabinet Base

The Waldorf RNL8600E-CB is a 900mm wide commercial electric cooktop from the respected 800 Series range, designed for high-volume kitchens that demand consistent, reliable performance. It features six 2.4kW radiant elements delivering a combined output of 14.4kW, each with six temperature settings plus a simmer function, giving chefs precise control across a wide range of cooking tasks.

Built in New Zealand from heavy-duty 304 stainless steel, this unit is mounted on a solid cabinet base and runs on a 415V three-phase supply. Practical design touches including adjustable feet, two additional rollers, reinforced control knobs, and a low-back splashback make it straightforward to install, reposition, and maintain in a busy commercial environment.

Key Benefits

• Six independently controlled radiant elements allow multiple dishes to be cooked simultaneously at different temperatures, improving kitchen throughput.
• Each element offers six heat settings plus a dedicated simmer position, giving chefs accurate control for delicate sauces through to high-heat searing.
• The 14.4kW combined output on a 415V three-phase supply ensures rapid heat-up and sustained cooking power during peak service periods.
• Adjustable feet and two additional rollers make it easy to level the unit on uneven floors and reposition it for cleaning or servicing without heavy lifting.
• Heavy-duty reinforced control knobs withstand the rigours of constant daily use, reducing the risk of damage and costly replacements.
• The stainless steel construction is straightforward to wipe down, supporting fast cleaning between services and helping meet food safety standards.
• Optional hotplate elements provide flexibility to adapt the cooktop configuration to changing menu requirements without replacing the entire unit.
• A low-back splashback protects the wall behind the unit while keeping sightlines open, suiting open kitchen and pass environments.

Key Features

• Six 2.4kW radiant elements, totalling 14.4kW combined output
• Six temperature settings per element, including a dedicated simmer setting
• 900mm wide 800 Series configuration on a cabinet base with door
• Low-back splashback version for open kitchen sightlines
• 415V three-phase power supply (3P+N+E, 400-415Vac, 50/60Hz, 20A per phase)
• Heavy-duty 304 stainless steel construction throughout
• Heavy-duty reinforced control knobs for durability under constant use
• Adjustable feet for levelling on uneven surfaces
• Two additional rollers for ease of repositioning
• Optional hotplate elements available to suit varying menu needs
• Designed for straightforward cleaning, installation, and servicing
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Cabinet Door
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Electric
• Number of Burners: 6
• Power Rating: 14.4 kW|20A/phase|3P+N+E|400-415Vac|50/60Hz
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Variable High-Low
