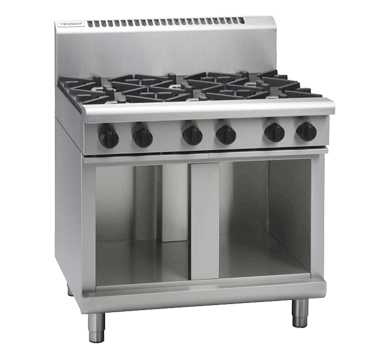

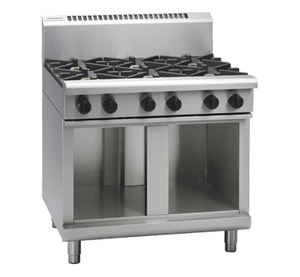

Waldorf RNL8600G-CB 800 Series 900mm Gas Cooktop Low Back Version – Cabinet Base

The Waldorf RNL8600G-CB is a 900mm wide, six-burner gas cooktop from the 800 Series, mounted on a solid cabinet base and designed for the demands of high-volume commercial kitchens. Built from 304 stainless steel in New Zealand, it delivers a combined output of 168 MJ/h across six open burners, each rated at 28 MJ/h, with variable high-low temperature control and compatibility with both natural gas and LPG supplies via a 3/4 BSP male connection.

Engineered with simplicity of operation and augmented performance in mind, the RNL8600G-CB features removable heavy-duty cast iron burners paired with vitreous enamel pot stands that include extended finger supports, allowing cookware to slide smoothly between burners. Flame failure protection on every burner, heavy-duty reinforced control knobs, adjustable feet and two additional rollers round out a unit built for reliable everyday service, easy cleaning, and straightforward installation and maintenance.

Key Benefits

• Six 28 MJ/h open burners provide rapid, responsive heat for fast-paced service periods across multiple cooking zones simultaneously.
• Flame failure protection on all burners automatically cuts gas flow if a flame is extinguished, supporting a safer kitchen environment.
• Vitreous enamel pot stands with extended finger supports let cooks slide pots and pans effortlessly from burner to burner without lifting, reducing fatigue and spill risk.
• Variable high-low temperature control on each burner gives chefs precise heat management for both searing and long, gentle simmering tasks.
• Removable cast iron burners and vitreous enamel pot stands simplify routine cleaning and allow quick component replacement to minimise downtime.
• Adjustable feet and two additional rollers make levelling straightforward on uneven floors and allow the unit to be repositioned for deep cleaning or kitchen reconfiguration.
• Dual gas compatibility with natural gas and LPG via a standard 3/4 BSP male connection offers flexibility across different venue installations.
• Heavy-duty 304 stainless steel construction withstands the rigours of continuous commercial use while remaining hygienic and easy to wipe down.
• Cabinet base provides enclosed under-counter storage, keeping the cooking line organised and maximising utility of the footprint.

Key Features

• Six open burners, each rated at 28 MJ/h, for a total combined output of 168 MJ/h (46.7 kW)
• Variable high-low temperature control on every burner
• Flame failure protection on all six burners
• Removable heavy-duty cast iron burner assemblies for easy servicing and cleaning
• Vitreous enamel pot stands with extended finger supports to facilitate smooth pan transfer between burners
• Heavy-duty reinforced control knobs designed to withstand constant commercial use
• 304 stainless steel construction throughout
• Cabinet base with cabinet door configuration for enclosed under-counter storage
• Low back (splashback) version
• Compatible with natural gas and LPG; gas connection: R 3/4 BSP male
• Adjustable feet for levelling on uneven surfaces
• Two additional rollers for repositioning the unit
• 900mm wide footprint suits modular 800 Series line-up configurations
• Designed and manufactured in New Zealand
• Engineered for easy cleaning, installation, and servicing

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 168
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Cabinet Door
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 6
• Power Rating: 46.7 kW
• Temperature Control: Variable High-Low
