Overview

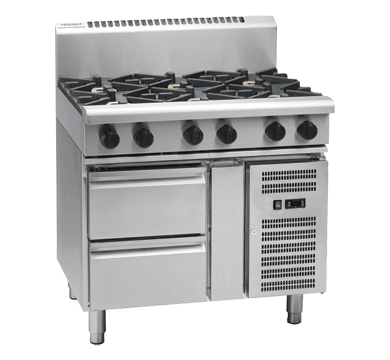

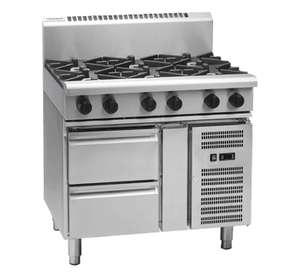

Waldorf RNL8600G-RB 800 Series 900mm Gas Cooktop Low Back Version with Refrigerated Base

The Waldorf RNL8600G-RB combines a six-burner gas cooktop with an integrated refrigerated base, delivering a compact yet high-output cooking and cold storage solution for busy commercial kitchens. Part of the respected 800 Series, it pairs six open burners each rated at 28MJ/hr with a refrigerated underbody capable of holding 0°C to 4°C, keeping ingredients cold and accessible right at the point of cooking.

Designed and manufactured in New Zealand from 304 stainless steel, this unit is built to withstand the rigours of continuous commercial use. Practical details such as vitreous enamel pot stands with extended finger supports, flame failure protection on every burner, heavy-duty reinforced control knobs, and a low back configuration make it straightforward to operate, clean, and service. Compatible with both natural gas and LPG, it suits a wide range of venue setups.

Key Benefits

• Six burners each delivering 28MJ/hr provide substantial combined output of 168MJ/hr, handling multiple large pots simultaneously during peak service.
• Integrated refrigerated base keeps proteins, dairy, and prepped ingredients at safe holding temperatures directly beneath the cooking surface, reducing travel time and improving workflow.
• Flame failure protection on every burner automatically cuts the gas supply if a flame is extinguished, improving safety in fast-paced kitchen environments.
• Vitreous enamel pot stands with extended finger supports allow cookware to slide smoothly from burner to burner without lifting, speeding up service and reducing fatigue.
• Adjustable feet combined with two additional rollers make levelling straightforward and allow the unit to be repositioned for cleaning or kitchen reconfiguration.
• Removable cast iron burners and pot stands simplify day-to-day cleaning and routine maintenance, minimising downtime.
• Compatible with both natural gas and LPG connections, giving flexibility across different site gas supplies.
• Low back design allows installation against walls or in island configurations without obstructing sightlines or ventilation requirements.
• 304 stainless steel construction resists corrosion and the knocks of a commercial environment, supporting a long service life.

Key Features

• Six open burners each rated at 28MJ/hr, totalling 168MJ/hr combined output
• Flame failure protection on all six burners as a standard safety feature
• Removable heavy-duty cast iron burners for straightforward cleaning and replacement
• Vitreous enamel pot stands with extended finger supports to allow smooth pan movement between burners
• Heavy-duty reinforced control knobs with variable high-low temperature control
• Integrated refrigerated base with a temperature range of 0°C to 4°C and 1.03m³ volume
• Power supply: 220-240Vac 50Hz, 1.8A, 1P+N+E 3-pin 10A plug cordset fitted
• Gas connection: R 3/4 (BSP) male, compatible with natural gas and LPG
• Low back (splashback) configuration
• Adjustable feet plus two additional rollers for levelling and repositioning
• Heavy-duty 304 stainless steel construction throughout
• Designed to accommodate hot top simmer plates and 300mm, 600mm, or 900mm griddle plate options
• Packed weight: 245kg
• Manufactured in New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 168
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: 0°C to 4°C
• Fuel Type: Gas / Electric
• Number of Burners: 6
• Power Rating: 1.8A|1P+N+E 3 pin 10A plug cordset fitted|220-240Vac|50Hz
• Power Supply: 415V 3 Phase
• Temperature Control: Variable High-Low
