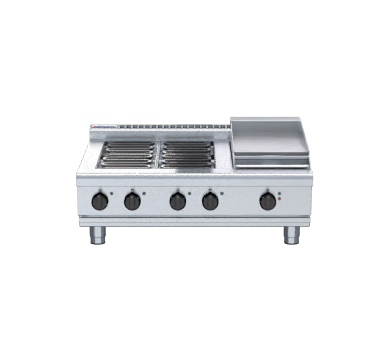

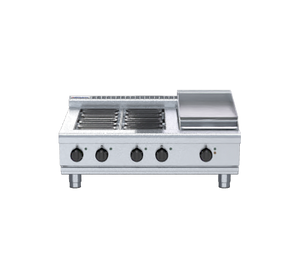

Waldorf RNL8603E-B 800 Series 900mm Electric Cooktop with Griddle Low Back Bench Model

The Waldorf RNL8603E-B is a 900mm wide bench-mount electric cooktop from the 800 Series, combining four 2.4kW radiant elements with a 300mm, 3.6kW griddle section positioned on the right-hand side as standard. Constructed with welded 304 stainless steel throughout and aluminised steel internal framing, this unit is engineered to withstand the rigours of continuous commercial kitchen operation.

Designed for straightforward installation, cleaning and servicing, the RNL8603E-B features hinge-up element and griddle sections, removable vitreous enamelled hob spill trays, and front-access to all internal components. Four adjustable bench legs with 80–105mm height range and two additional rollers make positioning and levelling simple in any kitchen layout.

Key Benefits

• Four independently controlled 2.4kW radiant elements provide flexible, responsive heat across a wide cooking surface for simultaneous multi-pot cooking.
• The integrated 3.6kW griddle with 12mm mild steel plate and 50–320°C thermostat control delivers consistent, even surface temperatures for proteins, vegetables and breakfast items.
• Six temperature settings plus a simmer setting on each element give chefs precise control from gentle holding through to high-output cooking.
• Indicator lights for both power and heating status on every element control allow staff to monitor the cooktop at a glance and reduce energy waste.
• Hinge-up element and griddle sections combined with removable vitreous enamelled spill trays simplify daily cleaning and reduce downtime.
• All serviceable components are accessible from the front of the unit, minimising disruption to the kitchen during maintenance.
• Heavy-duty reinforced, heat-resistant control knobs with easy-view settings withstand constant use and are straightforward to read in a busy environment.
• Adjustable bench legs (80–105mm height range) and two additional rollers allow precise levelling and easy repositioning on the floor.
• Optional hot plate elements with machine-finished 8mm steel plate expand cooking versatility without requiring a different unit.

Key Features

• Four 2.4kW open radiant elements set in heavy-duty welded element frames
• One 3.6kW griddle element with 12mm thick mild steel griddle plate; griddle positioned on right-hand side as standard
• Six temperature settings plus simmer setting per radiant element via energy regulator controls
• 50–320°C thermostat control per 300mm griddle section
• Indicator lights for power and heating status on each individual element control
• Welded hob constructed from 1.5mm 304 stainless steel with bull-nose edge
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• Aluminised steel internal construction
• Vitreous enamelled element module and removable hob spill trays for easy cleaning
• 2.5mm 304 stainless steel griddle splash guards
• Hinge-up element and griddle sections for access and cleaning
• All parts accessible from the front of the unit
• Large, heat-resistant reinforced control knobs with easy-view settings on knob face
• Four 63mm diameter heavy-duty 1.2mm 304 stainless steel bench legs with adjustable feet
• Adjustable foot height range of 80–105mm
• Two additional rollers supplied for repositioning
• Bench-mount configuration (supplied as -B model)
• Optional hot plate elements with machine-finished 8mm steel plate available
• Heavy-duty stainless steel external finish throughout
• Low back version design

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 370
• Weight (kg): 340.0
