Overview

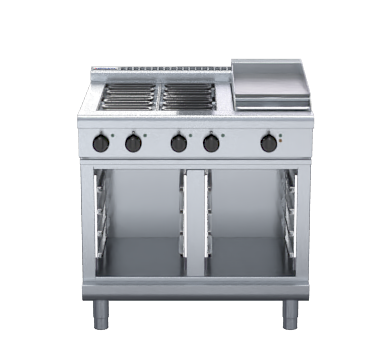

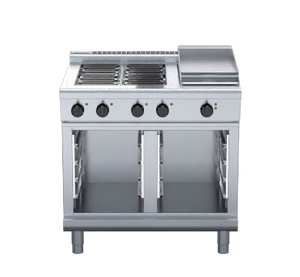

Waldorf RNL8603E-CB 800 Series 900mm Electric Cooktop Low Back Version Cabinet Base

The Waldorf RNL8603E-CB is a 900mm wide electric cooktop from the renowned 800 Series, combining four 2.4kW radiant elements with a 300mm griddle section on a fully integrated cabinet base. Constructed with a welded hob in 1.5mm 304 stainless steel and aluminised steel internal components, this unit is engineered to withstand the rigours of high-volume commercial kitchen operation while delivering precise, consistent cooking performance across every zone.

The low back configuration suits venues where a clean sightline and suite integration are priorities, and the fully modular cabinet base allows it to be matched seamlessly within a cooking suite. With hinge-up element and griddle sections, front-access servicing, and removable vitreous enamelled spill trays, the RNL8603E-CB is designed to keep cleaning and maintenance quick and straightforward in demanding foodservice environments.

Key Benefits

• Four individual radiant elements each rated at 2.4kW deliver responsive, even heat across the cooktop for consistent results on multiple pots simultaneously.
• The integrated 300mm griddle section with a 3.6kW element and 50-320°C thermostat provides precise temperature control for searing, frying and delicate cooking tasks on the same unit.
• Six temperature settings plus a simmer setting on each element give chefs fine control over heat levels, reducing the risk of scorching sauces or delicate dishes.
• Hinge-up element and griddle sections combined with front-access servicing minimise equipment downtime and simplify routine cleaning and maintenance.
• Removable vitreous enamelled element modules and hob spill trays make spill clean-up fast and thorough, supporting kitchen hygiene standards.
• Heavy-duty heat-resistant reinforced control knobs with easy-view settings withstand the knocks and heat of continuous commercial use.
• Adjustable feet and two additional rollers allow straightforward repositioning and precise levelling on uneven floors.
• The fully modular cabinet base with double-skin 304 stainless steel interior and exterior can be matched to a suite finish, with an optional GN 1/1 four-position racking kit for storage flexibility.
• Optional hot plate elements with machine-finished 8mm steel plate expand cooking versatility without requiring a separate appliance.

Key Features

• 4 x 2.4kW open radiant elements housed in heavy-duty welded element frames
• 1 x 3.6kW griddle element with 12mm thick mild steel griddle plate, located on the right-hand side as standard
• 300mm griddle section with 50-320°C thermostat per section and 2.5mm 304 stainless steel splash guards
• Six temperature settings plus simmer setting per radiant element
• Welded hob constructed from 1.5mm 304 stainless steel with bull-nose edge
• Splashback and side panels in 1.2mm 304 stainless steel; front panels in 0.9mm 304 stainless steel
• Aluminised steel internal construction throughout
• Vitreous enamelled element module and hob spill trays, fully removable for cleaning
• Hinge-up element and griddle sections for easy access
• All servicing accessible from the front of the unit
• Large heat-resistant reinforced control knobs with easy-view settings on knob face
• Indicator lights for power and heating status on each element control
• Energy regulator controls for both radiant and hot plate elements
• Optional hot plate elements with machine-finished 8mm steel plate
• Cabinet base with double-skin 0.9mm 304 stainless steel interior and exterior
• Fully modular cabinet base for matched suite finish
• 63mm diameter heavy-duty 1.2mm 304 stainless steel legs with adjustable feet
• Two additional rollers for ease of repositioning
• Optional GN 1/1 four-position racking kit for cabinet base
• Heavy-duty stainless steel external finish across all models

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
