Overview

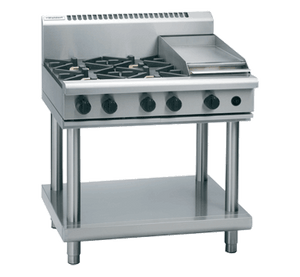

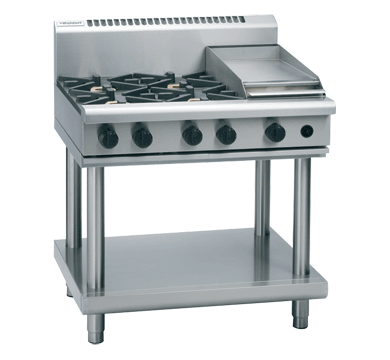

Waldorf RNL8603G-LS 800 Series 900mm Gas Cooktop with 300mm Griddle – Low Back, Leg Stand

The Waldorf RNL8603G-LS is a heavy-duty 900mm gas cooktop from the 800 Series, combining four open burners with a 300mm smooth griddle plate on a robust leg stand. Constructed from 304 stainless steel and built in New Zealand, it is engineered for the rigours of high-volume commercial kitchen service, offering consistent, responsive heat across every cooking zone.

Flame failure protection is fitted to all burners as standard, while removable cast iron burners and vitreous enamel pot stands simplify cleaning and maintenance. The unit sits on adjustable feet with two additional rollers for easy repositioning, and the low back profile suits installations where a full riser is not required. The griddle is positioned on the right-hand side as standard, and the cooktop is compatible with both natural gas and LPG.

Key Benefits

• Four 28 MJ/hr open burners deliver rapid, responsive heat ideal for high-demand commercial cooking across multiple pots simultaneously.
• Integrated 20 MJ/hr thermostatic griddle with a smooth surface expands versatility, handling eggs, pancakes, proteins and more within the same 900mm footprint.
• Flame failure protection on every burner shuts off gas automatically if a flame extinguishes, improving safety in busy kitchen environments.
• Removable cast iron burners and vitreous enamel pot stands make routine cleaning straightforward and reduce downtime between services.
• Adjustable feet combined with two integrated rollers allow precise levelling and easy movement for cleaning or repositioning without additional equipment.
• Heavy-duty reinforced control knobs withstand the repeated, forceful use typical in professional kitchens, reducing wear and maintenance costs.
• Dual gas compatibility with both natural gas and LPG via a 3/4 BSP male connection gives flexibility across different venue fit-outs.
• 304 stainless steel construction throughout provides corrosion resistance and a professional finish that holds up under continuous commercial use.

Key Features

• 900mm wide 800 Series gas cooktop in low back configuration, mounted on a leg stand with undershelf
• 4 x 28 MJ/hr heavy-duty removable cast iron open burners
• 1 x 20 MJ/hr griddle burner with 300mm smooth griddle surface, positioned on the right-hand side as standard
• Total burner output: 112 MJ/hr (31.1 kW)
• Thermostatic temperature control on griddle, range 100–290°C
• Flame failure protection fitted to all burners
• Vitreous enamel pot stands for durability and easy removal
• Heavy-duty reinforced control knobs
• Adjustable feet and 2 additional rollers for levelling and mobility
• 304 stainless steel construction throughout
• Compatible with natural gas and LPG; gas connection R 3/4 (BSP) male
• Integrated undershelf and low back splashback included
• Designed for easy cleaning, installation and servicing
• Manufactured in New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 112
• Material: 304 Stainless Steel
• Undershelf: Yes
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: 100-290°C
• Fuel Type: Gas
• Number of Burners: 4
• Griddle Surface: Smooth
• Power Rating: 31.1 kW
• Temperature Control: Thermostatic
