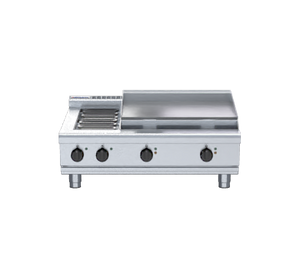

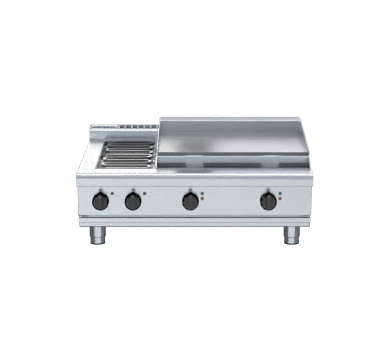

Waldorf RNL8606E-B 800 Series 900mm Electric Cooktop Low Back Version – Bench Model

The Waldorf RNL8606E-B is a 900mm wide bench model electric cooktop from the 800 Series, combining two 2.4kW open radiant elements with a 600mm griddle section powered by two 3.6kW elements. Constructed with welded 1.5mm 304 stainless steel bull nose hob, 1.2mm 304 stainless steel splashback and side panels, and aluminised steel internal construction, this unit is built to withstand the rigours of continuous commercial kitchen operation.

Designed for straightforward installation and everyday serviceability, the RNL8606E-B features hinge-up element and griddle sections, removable vitreous enamelled hob spill trays, and full front access to all components. The griddle is positioned on the right-hand side as standard, and optional hot plate elements with machine-finished 8mm steel plate are available to suit varying menu requirements.

Key Benefits

• Dual radiant elements alongside a 600mm griddle section provide versatile cooking capability for high-volume service periods.
• Per-section thermostat control on the griddle (50–320°C per 300mm section) allows precise temperature zoning for different food types simultaneously.
• Six temperature settings plus a simmer setting on radiant elements give chefs fine control from gentle simmering through to high-heat cooking.
• Hinge-up element and griddle sections with full front access reduce servicing time and minimise kitchen downtime.
• Removable vitreous enamelled element module and hob spill trays simplify daily cleaning routines.
• Four heavy-duty 63mm diameter stainless steel bench legs with adjustable feet (80–105mm height range) plus two additional rollers allow flexible positioning on uneven floors.
• Indicator lights for power and heating status on each element control let kitchen staff monitor cooking zones at a glance.
• Optional hot plate elements with machine-finished 8mm steel plate expand the unit's cooking versatility without requiring a different appliance.

Key Features

• 2 x 2.4kW open radiant elements set in heavy-duty welded element frames
• 2 x 3.6kW griddle elements powering a 600mm griddle section; griddle positioned on right-hand side as standard
• 12mm thick mild steel griddle plates with 2.5mm 304 stainless steel griddle splash guards
• Six temperature settings plus simmer setting on radiant element energy regulator controls
• 50–320°C thermostat per 300mm griddle section for independent zone temperature control
• Indicator lights for both power and heating status on each individual element control
• Welded hob constructed from 1.5mm 304 stainless steel with bull nose profile
• Splashback and side panels in 1.2mm 304 stainless steel; front panels in 0.9mm 304 stainless steel
• Aluminised steel internal construction
• Vitreous enamelled element module and hob spill trays – removable for easy cleaning
• Hinge-up element and griddle sections for convenient access
• All serviceable parts accessible from the front of the unit
• Large heat-resistant reinforced control knobs with easy-view settings
• Four 63mm diameter heavy-duty 1.2mm 304 stainless steel bench legs with adjustable feet; height adjustable 80–105mm
• Two additional rollers supplied for repositioning
• Optional hot plate elements with machine-finished 8mm steel plate available as an upgrade
• Bench model configuration (supplied as -B model)

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 370
• Weight (kg): 340.0
