Overview

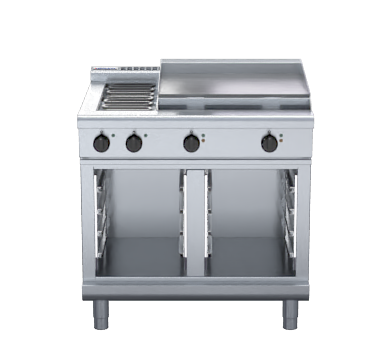

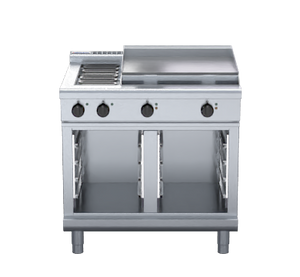

Waldorf RNL8606E-CB 800 Series 900mm Electric Cooktop Low Back Version Cabinet Base

The Waldorf RNL8606E-CB is a heavy-duty 900mm electric cooktop from the Waldorf 800 Series, combining two radiant elements with a 600mm griddle on a fully enclosed cabinet base. Constructed from 304 stainless steel throughout, it is engineered for the demands of high-volume commercial kitchens requiring both precision cooking and long-term durability.

The unit features a welded hob with a 1.5mm 304 stainless steel bull nose, vitreous enamelled element modules and hob spill trays, and 12mm thick mild steel griddle plates with dedicated stainless steel splash guards. The cabinet base is fully modular for suite matching, and all servicing and cleaning can be performed from the front of the unit, minimising operational downtime.

Key Benefits

• Two 2.4kW radiant elements paired with two 3.6kW griddle elements deliver versatile, high-output cooking across a compact 900mm footprint.
• Per-section thermostat control (50–320°C per 300mm griddle section) allows precise temperature management for different menu items simultaneously.
• Six temperature settings plus a simmer setting give chefs fine control for delicate sauces through to high-heat searing.
• Hinge-up element and griddle sections along with removable vitreous enamelled spill trays make daily cleaning fast and thorough.
• Front-access servicing for all components reduces the space required for maintenance and keeps the unit in service longer.
• Adjustable feet and two additional rollers allow easy repositioning and accurate levelling on uneven floors.
• Fully modular cabinet base with double-skin 304 stainless steel interior and exterior integrates neatly into a matched suite.
• Optional hot plate elements and an optional GN 1/1 four-position racking kit for the cabinet base extend the unit's versatility to suit evolving kitchen needs.
• Indicator lights for power and heating on each element control give at-a-glance status for safe, efficient kitchen workflow.

Key Features

• Welded hob constructed from 1.5mm 304 stainless steel with bull nose edge
• Splashback and side panels in 1.2mm 304 stainless steel; front panels in 0.9mm 304 stainless steel
• 2 x 2.4kW open radiant elements housed in heavy-duty welded element frames
• Vitreous enamelled element modules and hob spill trays for easy removal and cleaning
• 600mm griddle with 12mm thick mild steel griddle plates, positioned on the right-hand side as standard
• 2 x 3.6kW griddle elements with 50–320°C thermostat control per 300mm griddle section
• 2.5mm 304 stainless steel griddle splash guards
• Aluminised steel internal construction
• Large heat-resistant reinforced control knobs with easy-view settings
• Energy regulator controls for both radiant and hot plate elements
• Individual power and heating indicator lights for each element control
• Six temperature settings including a dedicated simmer setting
• Hinge-up element and griddle sections for thorough access and cleaning
• All parts accessible from the front of the unit
• Optional hot plate elements with machine-finished 8mm steel plate
• Cabinet base with double-skin 0.9mm 304 stainless steel interior and exterior
• Fully modular cabinet base designed for matched suite configuration
• 63mm diameter heavy-duty 1.2mm 304 stainless steel legs with adjustable feet
• Two additional rollers supplied for easy repositioning
• Optional GN 1/1 four-position racking kit for cabinet base

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
