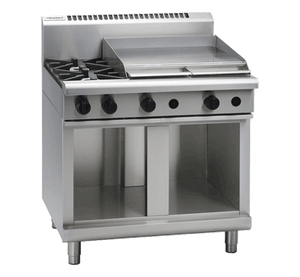

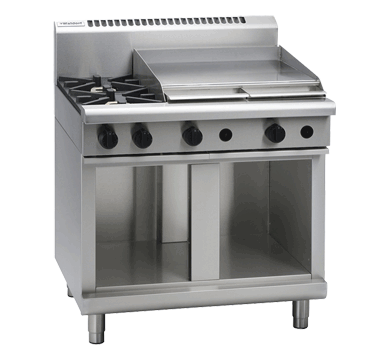

Waldorf RNL8606G-CB 800 Series 900mm Gas Cooktop Low Back Version Cabinet Base

The Waldorf RNL8606G-CB is a 900mm wide 800 Series gas cooktop combining two open burners with a 600mm griddle plate, all mounted on a cabinet base. Designed and built in New Zealand from 304 stainless steel, it delivers a total output of 96MJ/hr across four burners, making it a high-performance centrepiece for busy commercial kitchens.

The low back version is engineered for straightforward operation and long-term reliability, with features such as flame failure protection on every burner, removable cast iron burners, vitreous enamel pot stands with extended finger supports, and thermostatic temperature control on the griddle. The cabinet base provides enclosed undercounter storage, while adjustable feet and two additional rollers allow flexible positioning and easy repositioning during service or cleaning.

Key Benefits

• Four-burner total output of 96MJ/hr (two open burners at 28MJ/hr each, two griddle burners at 20MJ/hr each) delivers sustained cooking power across multiple menu items simultaneously.
• Flame failure protection on all burners automatically cuts gas supply if a flame is extinguished, reducing risk and supporting a safer kitchen environment.
• The 600mm smooth griddle plate with thermostatic control allows precise, consistent surface temperatures between 100°C and 290°C, ideal for proteins, eggs, pancakes and delicate items.
• Vitreous enamel pot stands with extended finger supports let chefs slide pots and pans smoothly from one burner to the next, improving workflow speed during peak service.
• Removable heavy-duty cast iron burners simplify routine cleaning and maintenance, reducing downtime and extending the working life of the unit.
• Adjustable feet combined with two additional rollers make levelling straightforward during installation and allow the unit to be repositioned when kitchen layouts change.
• Heavy-duty reinforced control knobs withstand the rigours of continuous commercial use, maintaining accurate flame and temperature adjustments over time.
• Compatible with natural gas and LPG via a 3/4 BSP male connection, providing flexibility across different site gas supplies.
• Cabinet door base offers enclosed storage directly beneath the cooktop, making efficient use of floor space in compact or high-traffic kitchen environments.

Key Features

• Two open burners rated at 28MJ/hr each for high-heat cooking applications
• 600mm smooth griddle plate positioned on the right-hand side as standard, powered by two 20MJ/hr burners
• Thermostatic temperature control on griddle with a range of 100°C to 290°C
• Flame failure protection fitted to all four burners
• Removable heavy-duty cast iron burners for simplified cleaning and servicing
• Vitreous enamel pot stands with extended finger supports enabling smooth pan transfer between burners
• Heavy-duty reinforced control knobs built for intensive daily commercial use
• Cabinet base with enclosed door storage beneath the cooktop
• Low back splashback included as standard
• Adjustable feet plus two additional rollers for levelling and mobility
• Constructed from 304 stainless steel with a heavy-duty stainless steel finish throughout
• Compatible with both natural gas and LPG; 3/4 BSP male gas connection
• Total cooktop width 900mm; overall dimensions 900mm W x 805mm D x 972mm H
• Designed and manufactured in New Zealand
• Griddle surface: smooth
• Total power rating: 15.6kW

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 56
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Cabinet Door
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: 100-290°C
• Fuel Type: Gas
• Number of Burners: 2
• Griddle Surface: Smooth
• Power Rating: 15.6 kW
• Temperature Control: Thermostatic
