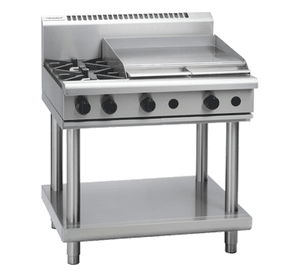

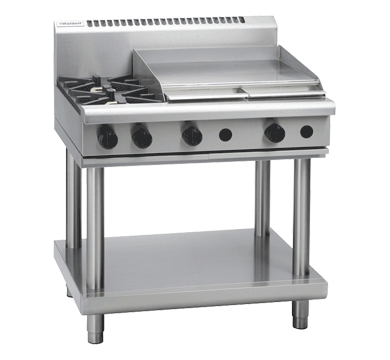

Waldorf RNL8606G-LS 800 Series 900mm Gas Cooktop Low Back Version – Leg Stand

The Waldorf RNL8606G-LS is a 900mm wide commercial gas cooktop from the 800 Series, combining two open burners with a 600mm griddle plate on a leg stand. Designed and built in New Zealand from 304 stainless steel, it delivers responsive, high-output cooking across multiple cooking zones, making it well suited to busy commercial kitchens that need reliable performance day in and day out.

Each open burner produces 28MJ/hr, while the twin griddle burners each output 20MJ/hr, providing both intense direct heat and consistent flat-top cooking from a single unit. The griddle is positioned on the right-hand side as standard, and the low back configuration keeps the unit compact and compatible with kitchen layouts where overhead clearance or visibility is a priority.

Key Benefits

• High-output open burners at 28MJ/hr each deliver rapid heat response for sautéing, boiling and sauce work.
• Integrated 600mm smooth griddle with dual 20MJ/hr burners allows simultaneous flat-top cooking alongside open-flame burners, reducing the need for separate equipment.
• Flame failure protection on all burners automatically cuts gas if a flame is extinguished, improving safety during high-volume service.
• Vitreous enamel pot stands with extended finger supports allow cookware to slide smoothly between burners, speeding up service and reducing the risk of spills.
• Removable cast iron burners and pot stands simplify daily cleaning and routine maintenance, minimising downtime.
• Adjustable feet combined with two additional rollers make levelling and repositioning the unit straightforward during installation or kitchen reconfiguration.
• Heavy-duty reinforced control knobs withstand the rigours of continuous commercial use and provide precise, reliable heat adjustment.
• Leg stand configuration provides open underclearance, supporting easy cleaning beneath the unit and compliance with kitchen hygiene requirements.

Key Features

• 2 open burners each rated at 28MJ/hr with removable heavy-duty cast iron construction
• 600mm smooth griddle plate with 2 dedicated griddle burners each rated at 20MJ/hr
• Griddle positioned on the right-hand side as standard
• Flame failure protection fitted to all burners
• Vitreous enamel pot stands with extended finger supports for easy cookware transfer between burners
• Heavy-duty reinforced control knobs for durability under continuous commercial use
• Constructed from 304 stainless steel throughout
• Low back (splash back) version for reduced overall height profile
• Leg stand base with adjustable feet and 2 additional rollers for easy positioning and levelling
• Compatible with natural gas and LPG; gas connection via R 3/4 BSP male fitting
• Thermostatic temperature control with a range of 100–290°C
• Designed for straightforward cleaning, installation and servicing
• Manufactured in New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 56
• Material: 304 Stainless Steel
• Undershelf: Yes
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: 100-290°C
• Fuel Type: Gas
• Number of Burners: 2
• Griddle Surface: Smooth
• Power Rating: 15.6 kW
• Temperature Control: Thermostatic
