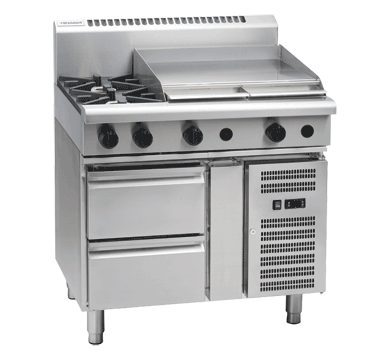

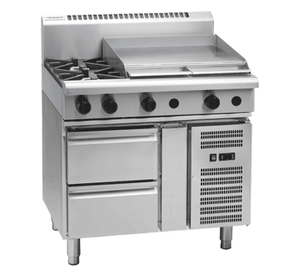

Waldorf RNL8606G-RB 800 Series 900mm Gas Cooktop Low Back Version with Refrigerated Base

The Waldorf RNL8606G-RB combines a high-performance 900mm gas cooktop with an integrated refrigerated base, forming a complete cooking and cold-storage solution within a single 800 Series unit. The cooktop features two 28MJ/hr open burners alongside a 600mm griddle plate powered by two 20MJ/hr griddle burners, with the griddle positioned on the right-hand side as standard. Flame failure protection is fitted to all burners, and removable cast iron burners with vitreous enamel pot stands simplify cleaning and maintenance.

Designed for the demands of busy commercial kitchens, the unit is constructed from heavy-duty 304 stainless steel and sits on adjustable feet with two additional rollers for easy repositioning. The refrigerated base maintains a temperature range of 0°C to 4°C with thermostatic control, providing 1.03m³ of cold storage directly beneath the cooking surface. Compatible with both natural gas and LPG, the RNL8606G-RB is manufactured in New Zealand and backed by a 12-month warranty.

Key Benefits

• Combining cooking and refrigeration in one unit saves valuable floor space in tight commercial kitchen layouts.
• Two high-output 28MJ/hr open burners and a 600mm griddle deliver serious cooking capacity for high-volume service.
• Flame failure protection on every burner automatically cuts gas supply if a flame goes out, improving kitchen safety.
• Vitreous enamel pot stands with extended finger supports allow pots and pans to slide smoothly between burners, speeding up service.
• The integrated refrigerated base keeps ingredients at 0°C to 4°C directly beneath the cooking station, reducing steps and improving workflow.
• Removable cast iron burners and a heavy-duty stainless steel finish make routine cleaning faster and more thorough.
• Adjustable feet and two rollers allow precise levelling and straightforward repositioning during kitchen reconfiguration or cleaning.
• Accepts both natural gas and LPG connections, giving flexibility across different site requirements.

Key Features

• Two 28MJ/hr open burners for high-heat cooking
• 600mm griddle plate powered by two 20MJ/hr griddle burners, positioned on the right-hand side as standard
• Flame failure protection fitted to all burners
• Removable heavy-duty cast iron burners for easy cleaning and servicing
• Vitreous enamel pot stands with extended finger supports allow smooth pan movement across burners
• Heavy-duty reinforced control knobs built to withstand continuous commercial use
• Integrated refrigerated base with thermostatic temperature control, maintaining 0°C to 4°C
• 1.03m³ refrigerated storage volume
• Low back (splashback) configuration included
• 304 stainless steel construction throughout
• Compatible with natural gas and LPG via R 3/4 (BSP) male gas connection
• Electrical supply: 220-240Vac, 50Hz, 1.8A, 1P+N+E 3-pin 10A plug cordset fitted
• Adjustable feet plus two additional rollers for levelling and mobility
• Designed for straightforward cleaning, installation, and servicing
• Manufactured in New Zealand
• 12-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 56
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: 0°C to 4°C
• Fuel Type: Gas / Electric
• Number of Burners: 2
• Griddle Surface: Smooth
• Power Rating: 1.8A|1P+N+E 3 pin 10A plug cordset fitted|220-240Vac|50Hz
• Temperature Control: Thermostatic
