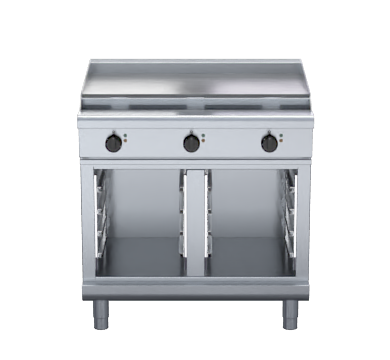

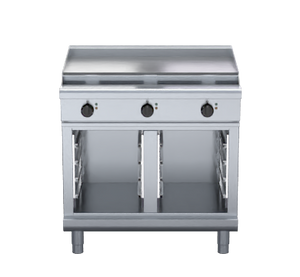

Waldorf RNL8609E-CB 800 Series 900mm Electric Cooktop Low Back Version Cabinet Base

The Waldorf RNL8609E-CB is a heavy-duty 900mm electric cooktop from the 800 Series, mounted on a cabinet base and designed for demanding commercial kitchen environments. The unit features a full-width 900mm griddle plate powered by three 3.6kW elements, with each 300mm griddle section independently controlled via a 50–320°C thermostat, allowing precise temperature zoning across the cooking surface.

Constructed with 304 stainless steel throughout, the RNL8609E-CB combines a welded 1.5mm bull nose hob, vitreous enamelled element modules and hob spill trays, and 12mm thick mild steel griddle plates for lasting durability. The fully modular cabinet base offers a double-skin stainless steel interior and exterior, and the entire unit is engineered for straightforward front-access servicing and cleaning, minimising downtime in busy service environments.

Key Benefits

• Independent thermostat control per 300mm griddle zone lets operators run multiple cooking temperatures simultaneously, improving flexibility during service.
• Three 3.6kW griddle elements deliver consistent, powerful heat across the full 900mm cooking surface, supporting high-volume output.
• Front-access design for all serviceable components, including hinge-up element and griddle sections, reduces maintenance time and simplifies cleaning between services.
• Removable vitreous enamelled element modules and hob spill trays make thorough cleaning quick and practical without specialist tools.
• Adjustable feet and two additional rollers allow precise levelling and easy repositioning within the kitchen suite.
• Fully modular cabinet base integrates seamlessly into a matched suite configuration, keeping the kitchen layout uniform and professional.
• Indicator lights for power and heating on each element control give operators an at-a-glance view of cooking status, reducing the risk of unintended energy use.
• Optional hot plate elements provide configuration flexibility to suit different menu requirements without replacing the entire unit.

Key Features

• 900mm wide cooktop with full-width griddle plate on cabinet base
• 3 x 3.6kW griddle elements with six temperature settings including a simmer setting
• 50–320°C thermostat control per 300mm griddle section for independent zone cooking
• 12mm thick mild steel griddle plates for even heat retention and durability
• 2.5mm 304 stainless steel griddle splash guards
• Welded hob constructed from 1.5mm 304 stainless steel with bull nose edge
• Splashback and side panels in 1.2mm 304 stainless steel; front panels in 0.9mm 304 stainless steel
• Vitreous enamelled element module and hob spill trays, fully removable for cleaning
• 2.4kW open radiant elements housed in heavy-duty welded element frames
• Aluminised steel internal construction
• Large heat-resistant reinforced control knobs with easy-view settings
• Individual power and heating indicator lights for each element control
• Energy regulator controls for both radiant and hot plate elements
• Hinge-up element and griddle sections for fast access during cleaning and servicing
• All components accessible from the front of the unit
• Fully modular cabinet base for matched suite installation
• Double-skin cabinet base with 0.9mm 304 stainless steel interior and exterior
• 63mm diameter heavy-duty 1.2mm 304 stainless steel legs with adjustable feet
• Two additional rollers for repositioning
• Optional GN 1/1 four-position racking kit for cabinet base
• Optional hot plate elements with machine-finished 8mm steel plate
• Low back version configuration

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
