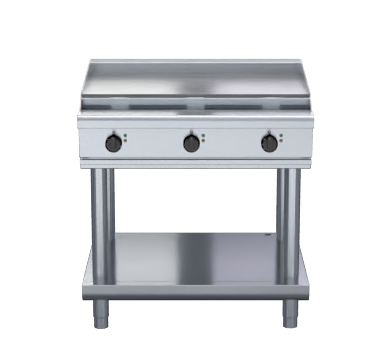

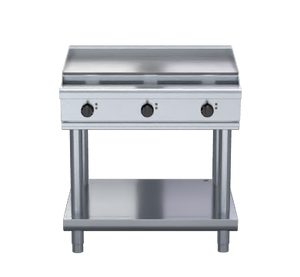

Waldorf RNL8609E-LS 800 Series 900mm Electric Cooktop Low Back Version – Leg Stand

The Waldorf RNL8609E-LS is a heavy-duty 900mm electric cooktop from the 800 Series, configured with a full-width griddle plate and mounted on a dedicated leg stand for freestanding installation in commercial kitchens. It combines three 3.6kW griddle elements across a 12mm thick mild steel griddle surface with precise per-section thermostat control, delivering consistent, controllable heat for high-volume cooking operations.

Constructed throughout in 304 stainless steel with an aluminised steel internal frame, the unit is built to withstand the rigours of busy professional kitchens. The fully modular leg stand assembles without tools and features a lower shelf, adjustable feet and two additional rollers for ease of positioning and levelling. Routine cleaning and servicing are simplified by hinge-up element and griddle sections, removable vitreous enamelled spill trays, and front-access design for all components.

Key Benefits

• Three independently controlled 300mm griddle sections allow simultaneous cooking at different temperatures, improving menu flexibility and reducing wait times.
• A 50–320°C thermostat per griddle section provides precise heat management, from a gentle simmer setting through to high-temperature searing.
• Hinge-up element and griddle sections combined with removable vitreous enamelled spill trays make end-of-service cleaning fast and thorough.
• Front-only access to all serviceable parts minimises kitchen downtime during maintenance and reduces the clearance space required around the unit.
• Tool-free modular leg stand assembly saves time on installation and allows the cooktop to be reconfigured or repositioned as kitchen layouts change.
• Adjustable feet and two additional rollers make levelling on uneven floors straightforward and allow the unit to be moved safely for deep cleaning.
• Heavy-duty reinforced, heat-resistant control knobs with easy-view markings reduce the risk of operator error during fast-paced service.
• Optional hot plate elements with machine-finished 8mm steel plate expand cooking versatility without requiring a separate appliance.
• Fully modular construction allows the unit to be paired with other 800 Series appliances for a matched suite finish in larger kitchen configurations.

Key Features

• 900mm full-width griddle on leg stand configuration
• Three 3.6kW griddle elements, each controlling an independent 300mm griddle section
• 12mm thick mild steel griddle plates for even heat retention and durability
• 50–320°C thermostat control per 300mm griddle section, including simmer setting
• Six temperature settings per section
• 2.4kW open radiant elements housed in heavy-duty welded element frames (cooktop hob area)
• Optional hot plate elements with machine-finished 8mm steel plate
• Welded hob constructed from 1.5mm 304 stainless steel with bull nose edge
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• 2.5mm 304 stainless steel griddle splash guards
• Aluminised steel internal construction
• Vitreous enamelled element module and hob spill trays, fully removable for cleaning
• Hinge-up element and griddle sections for access and cleaning
• All-front servicing access to internal components
• Indicator lights for power and heating status on each element control
• Large, heat-resistant reinforced control knobs with easy-view control settings
• Energy regulator controls for both radiant and hot plate elements
• Leg stand with 63mm diameter heavy-duty 1.2mm 304 stainless steel legs
• Adjustable feet for levelling on uneven surfaces
• Two additional rollers for repositioning the unit
• Modular framed stand shelf with 0.9mm 304 stainless steel finish
• Framed stand top designed for secure connection to the cooktop
• Quick tool-free assembly of leg stand
• Fully modular design compatible with matched 800 Series suite configurations
• Heavy-duty stainless steel external finish throughout

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
