Overview

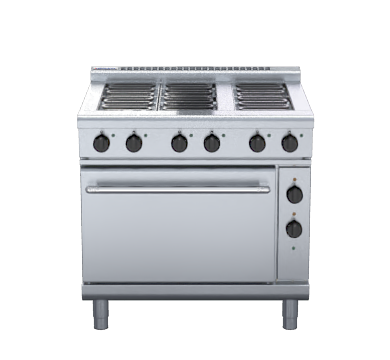

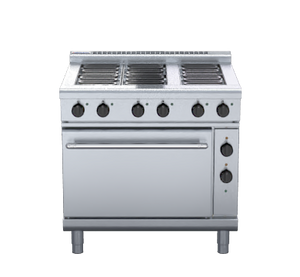

Waldorf RNL8610E 800 Series 900mm Electric Range Static Oven Low Back Version

The Waldorf RNL8610E is a 900mm wide commercial electric range from the renowned 800 Series, combining a six-element radiant cooktop with a full-size GN 2/1 static oven in a low back configuration purpose-built for high-output commercial kitchens. Constructed in New Zealand to exacting standards, the unit features a galvanised steel chassis clad in 304 stainless steel throughout, with a fully welded and vitreous enamelled oven liner, heavy-duty reinforced control knobs, and a cast iron even-heat oven sole plate that delivers consistent results across baking, roasting and general cookery.

Powered by a 415V three-phase supply at a combined 20.9kW, the RNL8610E is designed for straightforward installation, servicing and daily cleaning. Six 2.4kW open radiant elements each offer six temperature settings plus a simmer setting, while the GN 2/1 oven provides four-position racking, high-density fibreglass insulation and a welded drop-down door with a stay-cool stainless steel handle. Adjustable feet and two additional rollers make positioning simple, and optional hot plate elements allow the cooktop configuration to be tailored to kitchen requirements.

Key Benefits

• Cast iron even-heat oven sole plate distributes heat uniformly across the oven floor, improving consistency for baking and roasting across a full GN 2/1 load
• Six radiant elements each with a simmer setting give precise heat control for sauces, stocks and delicate preparations alongside high-heat cooking
• Vitreous enamelled oven liner and door inner resist grease absorption and wipe down quickly, reducing cleaning time between services
• High-density fibreglass insulation retains oven heat efficiently, supporting energy economy and a cooler external surface during prolonged operation
• Adjustable feet and two integrated rollers allow easy repositioning for cleaning or reconfiguration without lifting equipment
• Four-position oven racking with heavy-duty chrome wire rack supports and two included chrome wire racks provides flexible shelf placement for varied pan sizes
• Optional hot plate elements let operators adapt the cooktop surface to menu demands without replacing the unit
• Low back configuration suits kitchens where overhead clearance or hood alignment benefits from a reduced rear height profile
• Two-year warranty and New Zealand manufacture support long-term reliability and accessible after-sales service

Key Features

• 900mm wide 800 Series electric range in low back configuration
• Galvanised steel chassis for structural rigidity
• Welded hob constructed from 1.5mm 304 stainless steel with bull nose edge
• Splashback and hob sides in 1.2mm 304 stainless steel
• Front panels and oven sides in 0.9mm 304 stainless steel
• 150mm legs in 63mm diameter heavy-duty 1.2mm 304 stainless steel tube with adjustable feet
• Six 2.4kW open radiant elements mounted in heavy-duty welded element frames
• Each element offers six temperature settings plus a simmer setting
• Stainless steel spill trays beneath cooktop elements for easy cleaning
• Optional hot plate elements with machine-finished 8mm steel plate available
• 12mm thick mild steel griddle plates available; griddle sections standard on right-hand side, available on left-hand side or centre to order
• 2.5mm 304 stainless steel griddle splash guards
• Aluminised steel internal cooktop construction
• GN 2/1 capacity electric static oven with four-position racking
• 6.5kW oven heating elements
• Fully welded oven liner lined with vitreous enamel for hygiene and durability
• Cast iron even-heat oven sole plate for uniform base heat distribution
• Heavy-duty easy-remove heavy wire chrome rack supports
• Supplied with two chrome wire oven racks
• Welded frame drop-down oven door with heavy-duty spring hinge system
• 0.9mm 304 stainless steel oven door outer panel
• 1.0mm press-formed vitreous enamelled oven door inner panel
• High-density fibreglass oven insulation
• Stay-cool stainless steel door handle with cast metal handle mounts
• Heavy-duty reinforced control knobs
• Thermostatic oven temperature control, 150-300°C
• Analog display
• Total power rating 20.9kW, 3P+N+E, 400-415Vac, 50/60Hz
• 415V three-phase power supply
• Two additional rollers integrated into the base for repositioning
• Splashback included
• No undershelf
• Country of origin: New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Electric
• Number of Burners: 6
• Power Rating: 20.9kW|3P+N+E|400-415Vac|50/60Hz
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
