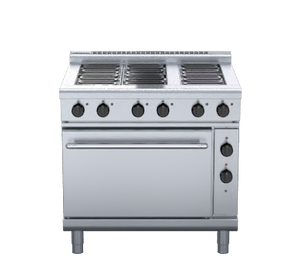

Waldorf RNL8610EC 800 Series 900mm Electric Range Convection Oven Low Back Version

The Waldorf RNL8610EC is a 900mm wide electric range from the 800 Series, combining a six-element radiant cooktop with a 2/1 GN fan-forced convection oven in a low back configuration. Manufactured in New Zealand from 304 stainless steel, it delivers 21.0 kW of total power across a robust platform designed for the demands of high-volume commercial kitchens, bakeries, and catering venues.

The cooktop features six 2.4 kW open radiant elements with six temperature settings plus a simmer setting, giving chefs precise control across every cooking zone. The convection oven operates between 150 and 300°C with thermostatic control, and its welded, vitreous enamel-lined cavity ensures even heat distribution and straightforward cleaning. With adjustable feet, two additional rollers, and optional hot plate elements, the RNL8610EC is a highly practical and adaptable cooking solution.

Key Benefits

• Fan-forced convection heat circulates evenly throughout the oven cavity, producing consistent results across multiple trays simultaneously.
• Six independent radiant cooktop elements with a simmer setting allow multiple dishes to be cooked at different temperatures at the same time.
• Vitreous enamel oven lining resists grease build-up and wipes clean quickly, reducing labour between services.
• Adjustable feet combined with two additional rollers make levelling and repositioning the unit straightforward during installation or kitchen reconfiguration.
• Cool touch stainless steel door handle and drop down door design allow safe, easy oven access in a busy kitchen environment.
• Optional hot plate elements provide added versatility for kitchens that need to adapt the cooktop surface to different cooking styles.
• Heavy-duty reinforced control knobs and welded construction throughout are built to withstand the rigours of continuous commercial use.
• 2/1 GN oven capacity supports large batch cooking, making the unit well suited to high-throughput operations such as bakeries, cafes, and restaurants.

Key Features

• 900mm wide 800 Series low back electric range configuration
• Six 2.4 kW open radiant cooktop elements, totalling 21.0 kW power output
• Six temperature settings per element plus a dedicated simmer setting
• 2/1 GN electric convection oven with fan-forced heat distribution
• Oven temperature range: 150°C to 300°C with thermostatic control
• Oven cavity welded and lined with vitreous enamel for durability and easy cleaning
• Drop down oven door with welded frame for robust, long-term operation
• Cool touch stainless steel door handle for safe handling during service
• Heavy-duty stainless steel exterior finish throughout
• Heavy-duty reinforced control knobs
• Adjustable feet plus two additional rollers for easy levelling and movement
• 2 oven shelves included
• Splash back included; low back version (no tall splash back)
• Optional hot plate elements available
• 304 stainless steel construction
• Power supply: 21.0 kW, 3P+N+E, 400-415 Vac, 50/60 Hz (415V three phase)
• Dimensions: 900mm W x 805mm D x 972mm H
• Packed weight: 263 kg
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Electric
• Number of Burners: 6
• Power Rating: 21.0 kW|3P+N+E|400-415Vac|50/60Hz
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
