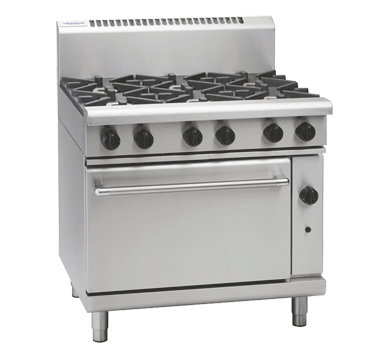

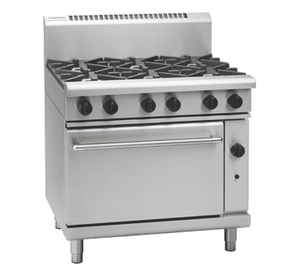

Waldorf RNL8610G 800 Series 900mm Gas Range Static Oven Low Back Version

The Waldorf RNL8610G is a 900mm wide commercial gas range from the respected 800 Series, combining a six-burner open cooktop with a 2/1 GN gas static oven in a low back configuration. Manufactured in New Zealand from 304 stainless steel, it is engineered to handle the sustained demands of busy commercial kitchens, delivering consistent cooking performance across both the cooktop and oven cavity.

Each of the six patented 28MJ/hr open burners is fitted with flame failure protection and removable heavy-duty cast iron components, while the oven cavity features a welded vitreous enamel lining and cast iron sole plate for even heat distribution across a thermostatic range of 150 to 300 degrees Celsius. Practical details such as adjustable feet, integrated rollers, a cool-touch door handle, and a reinforced drop-down oven door make this unit straightforward to operate, clean, and service in a professional environment.

Key Benefits

• Six high-output 28MJ/hr open burners deliver substantial cooktop power for rapid boiling, searing, and sauce work across multiple pans simultaneously
• Flame failure protection on every burner automatically cuts gas supply if a flame goes out, reducing safety risks during busy service periods
• The vitreous enamel-lined oven cavity and cast iron sole plate promote even heat distribution, supporting consistent baking and roasting results
• 2/1 GN oven capacity accommodates full-size gastronorm pans, maximising batch output to suit high-volume kitchen operations
• Removable cast iron burners and vitreous enamel pot stands simplify day-to-day cleaning and reduce downtime between services
• Adjustable feet combined with two additional rollers allow precise levelling on uneven floors and easy repositioning during cleaning or reconfiguration
• Heavy-duty reinforced control knobs and a drop-down oven door with welded frame are built to withstand repeated daily use in demanding kitchen environments
• Compatible with both natural gas and LPG, providing installation flexibility across different commercial kitchen setups

Key Features

• Six-burner cooktop range with 6 x 28MJ/hr patented open burners, totalling 168MJ/hr burner output (46.7kW)
• 2/1 GN capacity gas static oven with thermostatic temperature control ranging from 150 to 300 degrees Celsius
• Flame failure protection fitted to all six burners as standard
• Removable heavy-duty cast iron burners for easy cleaning and maintenance
• Vitreous enamel pot stands, removable for straightforward servicing
• Cast iron sole plate in the oven cavity for even heat distribution
• Oven lining is welded and finished with vitreous enamel for durability and ease of cleaning
• Drop-down oven door with welded frame construction
• Cool-touch stainless steel oven door handle
• Heavy-duty reinforced control knobs
• Adjustable feet and two additional rollers for levelling and mobility
• Low back (splashback) configuration
• Two oven shelves included
• 304 stainless steel construction throughout
• Compatible with natural gas and LPG; R 3/4 (BSP) male gas connection
• Analog temperature display
• Manufactured in New Zealand
• 24-month warranty
• Note: product images may depict the standard back version (RN8610G)

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 168
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas
• Number of Burners: 6
• Power Rating: 46.7 kW
• Temperature Control: Thermostatic
• Display Type: Analog
