Overview

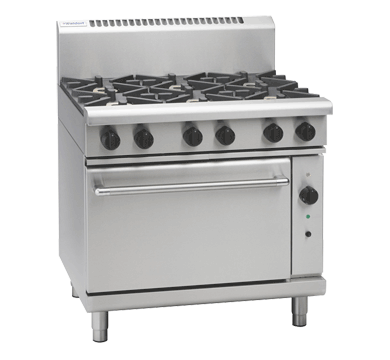

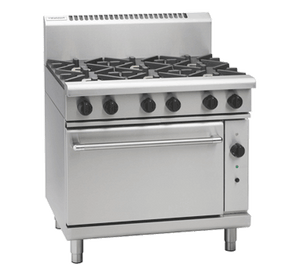

Waldorf RNL8610GC 800 Series 900mm Gas Range Convection Oven Low Back Version

The Waldorf RNL8610GC is a 900mm wide, six-burner gas range with an integrated 2/1 GN gas convection oven, forming part of the proven Waldorf 800 Series. Manufactured in New Zealand from 304 stainless steel, it combines a high-output cooktop with a fan-forced oven designed to handle the continuous demands of busy commercial kitchens, bakeries, cafes and catering operations.

Six patented 28MJ/hr open burners deliver serious cooktop performance, while cast iron sole plates and a heavy-duty circulation fan in the convection oven ensure even heat distribution and reduced cooking times. Safety is built in with flame failure protection across all burners, and practical details such as adjustable feet, two additional rollers, and vitreous enamel surfaces throughout make daily cleaning and servicing straightforward.

Key Benefits

• Fan-forced convection circulation reduces cooking times and allows food to be cooked at lower temperatures, improving energy efficiency and throughput.
• Six 28MJ/hr open burners provide substantial cooktop output, supporting simultaneous multi-pan cooking during peak service periods.
• Cast iron sole plates distribute oven heat evenly across the cavity, minimising hot spots for consistent baking and roasting results.
• Flame failure protection on every burner automatically cuts gas supply if a flame is extinguished, reducing safety risk in a busy kitchen environment.
• 2/1 GN oven capacity accommodates full gastronorm trays, enabling large-batch cooking with just two shelf positions.
• Vitreous enamel oven lining and pot stands resist staining and are easy to wipe down, reducing cleaning time between services.
• Adjustable feet combined with two additional rollers allow precise levelling and straightforward repositioning during cleaning or kitchen reconfiguration.
• Cool touch stainless steel door handle and a drop-down door with welded frame provide safe, ergonomic oven access during service.
• Compatible with both natural gas and LPG, giving operators flexibility across different site gas supplies.

Key Features

• Six-burner 900mm cooktop range with six individual 28MJ/hr open burners, totalling 168MJ/hr burner output.
• Patented open burner design across all six cooktop positions.
• 2/1 GN gas convection oven with heavy-duty motor and circulation fan for even, fan-forced heat.
• Cast iron sole plates inside the oven cavity for uniform heat distribution.
• Oven temperature range: 150°C to 300°C, thermostatically controlled via analogue dial.
• Oven lining is welded and finished with vitreous enamel for durability and ease of cleaning.
• Flame failure protection fitted to all six burners as a standard safety feature.
• Removable heavy-duty cast iron burners for easy access and maintenance.
• Vitreous enamel pot stands, removable for cleaning.
• Heavy-duty reinforced control knobs for reliable, long-term operation in high-use environments.
• Drop-down oven door with welded frame for structural integrity.
• Cool touch stainless steel oven door handle.
• Low back (splashback) configuration for installation flexibility.
• Heavy-duty 304 stainless steel construction throughout.
• Adjustable feet and two additional rollers for levelling and manoeuvrability.
• Gas connection: R 3/4 BSP male; compatible with natural gas and LPG.
• Electrical supply for convection fan: 0.13kW, 0.6A, 1P+N+E, 230–240V AC, 50/60Hz.
• Two oven shelves included as standard.
• No undershelf included.
• Country of origin: New Zealand.
• 24-month warranty.

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 168
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 6
• Power Rating: 0.13kW|0.6A|1P+N+E|230-240Vac|50/60Hz
• Temperature Control: Thermostatic
• Display Type: Analog
