Overview

Waldorf RNL8610GEC 800 Series 900mm Gas Range Electric Convection Oven Low Back Version

The Waldorf RNL8610GEC is a heavy-duty 900mm gas range with an underbench electric convection oven, forming part of the respected 800 Series lineup designed and built in New Zealand for the rigours of high-volume commercial kitchens. The cooktop features six patented 28MJ/hr open burners with flame failure protection on every burner, while the 2/1 GN electric convection oven below uses heavy-duty motors and circulation fans to deliver even, consistent heat that reduces cooking times and allows food to be cooked at lower temperatures.

Constructed from 304 stainless steel throughout, the RNL8610GEC is engineered for durability and ease of maintenance. Removable cast iron burners, vitreous enamel pot stands and a vitreous enamel-lined welded oven cavity simplify cleaning, while the low back configuration suits kitchens where overhead clearance or bench height is a consideration. Adjustable feet and two additional rollers make positioning and levelling straightforward during installation and routine service.

Key Benefits

• Fan-forced convection circulation ensures uniform heat distribution across all oven trays, producing consistent baking and roasting results batch after batch.
• Six high-output 28MJ/hr open burners deliver rapid heat response for wok cooking, sauteing and sauce work at high volume.
• Flame failure protection on every burner automatically cuts gas flow if a flame extinguishes, reducing the risk of gas build-up in a busy kitchen environment.
• Cast iron sole plates in the oven cavity absorb and radiate heat evenly, eliminating hot spots and improving food quality.
• Convection cooking at lower temperatures and reduced cooking times compared to conventional ovens helps save energy and increases kitchen throughput.
• Vitreous enamel oven lining and enamel pot stands resist staining and are easy to wipe down, cutting cleaning time between services.
• Adjustable feet and two integrated rollers allow the unit to be levelled precisely and repositioned without heavy lifting during kitchen reconfiguration.
• The 2/1 GN oven capacity accommodates full-size gastronorm trays, making the unit directly compatible with standard commercial kitchen workflow and cookware.

Key Features

• Six-burner gas cooktop range with six x 28MJ/hr patented open burners
• Flame failure protection fitted to all six burners as standard
• Removable heavy-duty cast iron burners for straightforward cleaning and replacement
• Vitreous enamel pot stands that resist chipping and are easy to clean
• 2/1 GN capacity electric convection oven with heavy-duty motor and circulation fan
• Oven cavity is welded construction and fully lined with vitreous enamel for durability and hygiene
• Cast iron sole plates in the oven for even heat distribution
• Drop-down oven door with welded frame for robust, long-term operation
• Cool-touch stainless steel oven door handle for operator safety
• Heavy-duty reinforced control knobs designed to withstand continuous commercial use
• Thermostatic oven temperature control with a range of 150 to 300°C
• Low back configuration suited to installations with height restrictions
• Splashback included as standard
• Adjustable feet plus two additional rollers for easy levelling and repositioning
• 304 stainless steel construction throughout
• Natural gas and LPG compatible with R 3/4 BSP male gas connection
• Analog display type
• Manufactured in New Zealand

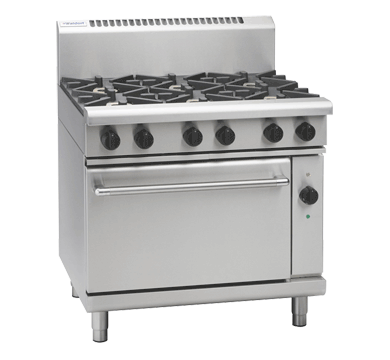

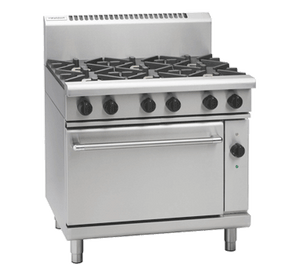

• Image shown in supplier materials represents the standard back version (RN8610GEC); this listing is the low back variant

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 168
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 6
• Power Rating: 1 phase connection|6.6kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
