Overview

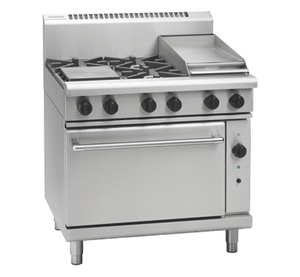

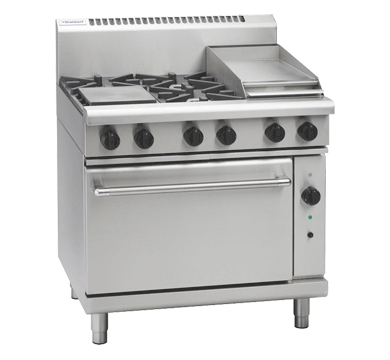

Waldorf RNL8613GC 800 Series 900mm Gas Range Convection Oven Low Back Version

The Waldorf RNL8613GC is a 900mm wide gas range from the 800 Series, combining a four-burner cooktop with a 300mm griddle above a 2/1 GN fan-forced gas convection oven. Manufactured in New Zealand from 304 stainless steel, the low back configuration suits kitchens where overhead clearance or sight lines require a reduced profile, while the generous cooktop and oven capacity make it a practical centrepiece for high-volume service.

Each of the four open burners delivers 28MJ/hr, with a dedicated 20MJ/hr griddle burner on the right-hand side as standard. Below, the convection oven uses heavy-duty motors and circulation fans to distribute heat evenly, reducing cooking times and allowing food to be cooked at lower temperatures than a conventional oven. Cast iron sole plates within the oven chamber further promote consistent heat distribution across every shelf position.

Key Benefits

• Fan-forced convection circulation cuts cooking times and enables lower operating temperatures, saving energy and improving throughput during busy service periods.
• Four high-output 28MJ/hr open burners plus a 300mm griddle give chefs versatile, simultaneous cooking options across a single 900mm unit.
• Flame failure protection on every burner automatically cuts the gas supply if a flame extinguishes, improving safety for kitchen staff.
• Vitreous enamel oven lining and welded oven construction make interior cleaning straightforward and resist the build-up of stubborn grease.
• Removable cast iron burners and vitreous enamel pot stands simplify routine cleaning and can be replaced independently if damaged.
• Adjustable feet and two additional rollers allow the unit to be levelled precisely on uneven floors and repositioned for servicing or cleaning without heavy lifting.
• A cool-touch stainless steel door handle and drop-down door with welded frame allow safe, controlled access to the oven cavity during service.
• Heavy-duty reinforced control knobs withstand the rigours of continuous commercial use and maintain accurate temperature and flame settings.
• 2/1 GN oven capacity accommodates large gastronorm trays, supporting batch cooking and high-volume roasting or baking in a single cook cycle.

Key Features

• 900mm wide low back configuration suited to kitchens with overhead clearance requirements
• Four-burner cooktop combined with a 300mm smooth griddle on the right-hand side as standard
• 4 x 28MJ/hr patented open cooktop burners for high-output cooking
• 1 x 20MJ/hr dedicated griddle burner
• 2/1 GN gas convection oven with fan-forced heat circulation
• Cast iron sole plates inside the oven for even heat distribution
• Heavy-duty motors and circulation fans reduce cooking times and allow lower cooking temperatures
• Oven thermostat range: 150-300°C
• Oven lining is welded and finished with vitreous enamel for durability and easy cleaning
• Flame failure protection fitted to all burners
• Removable heavy-duty cast iron burners for easy cleaning and replacement
• Vitreous enamel pot stands, removable for cleaning
• Drop-down oven door with welded frame
• Cool-touch stainless steel door handle
• Heavy-duty reinforced control knobs
• Adjustable feet and 2 additional rollers for levelling and repositioning
• Constructed from 304 stainless steel with a heavy-duty stainless steel finish
• Accepts both natural gas and LPG with an R 3/4 (BSP) male gas connection
• Electrical supply: 0.13kW, 0.6A, 1P+N+E, 230-240Vac, 50/60Hz
• 2 oven shelves included
• Splashback included; no undershelf
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 112
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 4
• Griddle Surface: Smooth
• Power Rating: 0.13kW|0.6A|1P+N+E|230-240Vac|50/60Hz
• Temperature Control: Thermostatic
• Display Type: Analog
