Overview

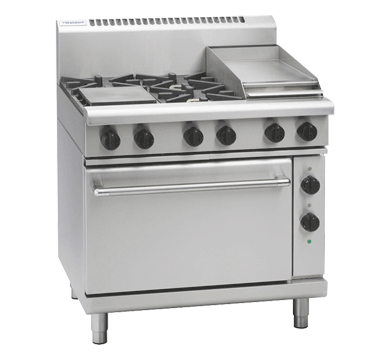

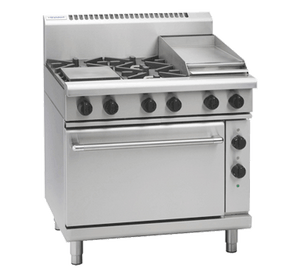

Waldorf RNL8613GE 800 Series 900mm Gas Range Electric Static Oven Low Back Version

The Waldorf RNL8613GE is a 900mm wide commercial range from the Waldorf 800 Series, combining a four-burner gas cooktop with a 300mm griddle section and a 2/1 GN electric static oven. Manufactured in New Zealand from 304 stainless steel, it is engineered for the rigorous demands of high-volume commercial kitchens, offering a practical split-fuel configuration that pairs the immediacy of gas cooking above with the consistent, thermostatic heat of an electric oven below.

Four 28MJ/hr open burners deliver serious cooktop output, while a dedicated 20MJ/hr griddle burner powers the right-hand side smooth griddle surface. The electric static oven operates across a temperature range of 150 to 300°C, with a vitreous enamel-lined welded cavity and cast iron sole plates providing even heat distribution for reliable baking and roasting results across a full 2/1 GN capacity.

Key Benefits

• Split gas and electric fuel configuration allows simultaneous high-heat cooktop work and precisely controlled static oven baking without compromise.
• Four high-output 28MJ/hr open burners plus a separate 20MJ/hr griddle burner provide versatile, powerful cooking across the entire cooktop surface.
• Flame failure protection on all burners enhances safety in busy kitchen environments by automatically cutting gas if a flame is extinguished.
• Vitreous enamel oven lining and cast iron sole plates promote even heat distribution and are easier to clean after service, reducing downtime.
• Adjustable feet and two additional rollers make positioning and levelling straightforward during installation or when repositioning equipment.
• Removable cast iron burners and vitreous enamel pot stands simplify routine cleaning and component maintenance.
• Heavy-duty reinforced control knobs and a cool-touch stainless steel door handle are built to withstand constant daily use in commercial conditions.
• Accepts both natural gas and LPG connections, giving operators flexibility regardless of the available gas supply at the venue.
• Two-year warranty and New Zealand manufacture back the unit's long-term reliability in professional kitchen operations.

Key Features

• 900mm wide 800 Series low back configuration
• Four-burner gas cooktop combined with a 300mm smooth griddle section, griddle positioned on the right-hand side as standard
• 4 x 28MJ/hr open burners with removable heavy-duty cast iron construction
• 1 x 20MJ/hr dedicated griddle burner
• Total cooktop burner output: 112MJ/hr
• Flame failure protection on all burners
• Vitreous enamel pot stands, removable for cleaning
• 2/1 GN capacity electric static oven
• Oven temperature range: 150 to 300°C with thermostatic control
• Oven cavity welded and lined with vitreous enamel for even heat retention and easy cleaning
• Cast iron sole plates in the oven for consistent heat distribution
• Drop-down oven door with welded frame construction
• Cool-touch stainless steel oven door handle
• 2 oven shelves included
• Heavy-duty reinforced control knobs
• Analogue temperature display
• 304 stainless steel construction throughout
• Splashback included; no undershelf
• Adjustable feet plus 2 additional rollers for ease of installation and repositioning
• Compatible with natural gas and LPG; R 3/4 BSP male gas connection
• Single-phase 6.5kW electric oven connection; 415V 3-phase power supply
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 112
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 4
• Griddle Surface: Smooth
• Power Rating: 1 phase connection|6.5kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
