Overview

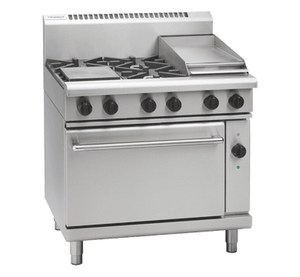

Waldorf RNL8613GEC 800 Series 900mm Gas Range Electric Convection Oven Low Back Version

The Waldorf RNL8613GEC is a heavy-duty 900mm gas range and electric convection oven from the 800 Series, designed to handle the demands of high-volume commercial kitchens. The cooktop features four open burners each rated at 28MJ/hr alongside a 300mm smooth griddle with a dedicated 20MJ/hr burner positioned on the right-hand side as standard, while the underbody houses a 2/1 GN electric convection oven for consistent, fan-forced results across a full range of baking and roasting applications.

Constructed in 304 stainless steel and manufactured in New Zealand, this low back version is built for durability and ease of maintenance. Flame failure protection across all burners, removable cast iron burners, vitreous enamel pot stands and a welded vitreous enamel oven lining all contribute to a unit that is straightforward to clean and service, while adjustable feet and two additional rollers allow for flexible positioning in busy kitchen environments.

Key Benefits

• Fan-forced convection oven delivers even heat distribution for consistent baking, roasting and reheating across multiple trays simultaneously.
• Four high-output 28MJ/hr open burners plus a dedicated 20MJ/hr griddle burner provide versatile, powerful cooktop performance for diverse menu requirements.
• Flame failure protection on every burner automatically cuts gas flow if a flame is extinguished, improving kitchen safety.
• 2/1 GN oven capacity supports large-scale batch cooking, reducing turnaround time during service.
• Removable cast iron burners and vitreous enamel pot stands simplify daily cleaning and routine maintenance.
• Welded, vitreous enamel-lined oven cavity resists staining and is easy to wipe down after service.
• Adjustable feet combined with two additional rollers allow the unit to be levelled precisely and repositioned with minimal effort.
• Cool touch stainless steel door handle and drop down door with welded frame provide safe, ergonomic oven access during busy service periods.
• Heavy-duty reinforced control knobs withstand continuous commercial use, reducing wear and maintenance costs over time.

Key Features

• 900mm wide 800 Series low back configuration
• Four open burners each rated at 28MJ/hr, total cooktop output 112MJ/hr
• 300mm smooth griddle with dedicated 20MJ/hr burner, positioned on the right-hand side as standard
• 2/1 GN electric convection oven with fan-forced heat distribution
• Oven temperature range 150-300°C with thermostatic control and analogue display
• Flame failure protection fitted to all burners
• Removable heavy-duty cast iron burners
• Vitreous enamel pot stands
• Oven lining is welded and finished with vitreous enamel for durability and easy cleaning
• Drop down oven door with welded frame
• Cool touch stainless steel door handle
• Heavy-duty reinforced control knobs
• Adjustable feet with two additional rollers for levelling and repositioning
• 304 stainless steel construction throughout
• Compatible with both natural gas and LPG; gas connection R 3/4 BSP male
• Electrical supply: 415V 3-phase, 6.6kW power rating (1-phase connection noted)
• Splashback included; no undershelf
• Two oven shelves included
• Manufactured in New Zealand

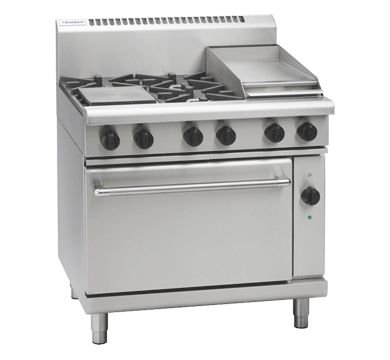

• Note: product images may show the standard back version (RN8613GEC); this listing is for the low back version (RNL8613GEC)

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 112
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 4
• Griddle Surface: Smooth
• Power Rating: 1 phase connection|6.6kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
