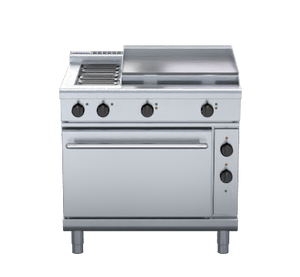

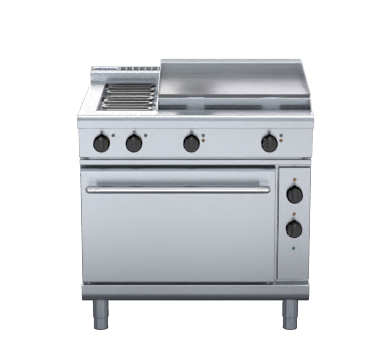

Waldorf RNL8616E 800 Series 900mm Electric Range with Static Oven, Low-Back Configuration

The Waldorf RNL8616E is a heavy-duty 900mm electric range from the 800 Series, bringing together a two-element radiant cooktop, a 600mm griddle section, and a full GN 2/1 electric static oven in a single low-back unit purpose-built for high-volume commercial kitchens. Construction centres on a galvanised steel chassis clad throughout in 304 stainless steel, with a vitreous enamelled oven liner, high-density fibreglass insulation, and a cast iron sole plate ensuring consistent, even heat across every cooking task.

Day-to-day operation is kept straightforward through heavy-duty reinforced control knobs offering six temperature settings plus a simmer setting, a welded-frame drop-down oven door with a robust spring hinge system, and a stay-cool stainless steel handle secured by cast metal mounts. The griddle is supplied in a right-hand position as standard, with left-hand and centre configurations available to order, and optional hot plate elements provide additional flexibility to suit evolving menu requirements.

Key Benefits

• GN 2/1 oven capacity with four-position racking and a cast iron sole plate delivers even, reliable heat for consistent baking and roasting results at scale.
• Six temperature settings plus a dedicated simmer setting give chefs precise control across a wide range of cooking applications on a single unit.
• Vitreous enamelled oven liner and door inner resist staining and simplify cleaning, reducing downtime between services.
• High-density fibreglass insulation retains oven heat efficiently, lowering energy consumption and keeping surrounding surface temperatures manageable.
• Adjustable feet and two integrated rollers make installation, repositioning, and routine servicing straightforward without specialist equipment.
• 12mm thick mild steel griddle plates retain and distribute heat evenly, while 304 stainless steel splash guards at 2.5mm thickness contain mess and protect surrounding surfaces.
• Optional hot plate elements using machine-ground 8mm steel plate allow the cooktop configuration to be adapted for different service styles without replacing the entire unit.
• Galvanised steel chassis with heavy-gauge 304 stainless steel exterior panels withstands the rigours of daily commercial use and resists corrosion.

Key Features

• 800 Series low-back configuration, 900mm wide
• Galvanised steel chassis construction
• Welded hob in 1.5mm 304 stainless steel with bull nose profile
• Splashback and hob sides in 1.2mm 304 stainless steel
• Front panels and oven sides fabricated from 0.9mm 304 stainless steel sheet
• 150mm-tall legs of 63mm-diameter tube, constructed in 1.2mm 304 stainless steel, with adjustable feet and 2 additional rollers
• 2 x 2.4kW open radiant elements mounted in robust welded element frames
• Stainless steel spill trays beneath radiant elements
• 600mm griddle section with 12mm thick mild steel griddle plates
• 2 x 3.6kW griddle elements
• Perimeter splash guards around the griddle section in 2.5mm 304 stainless steel, with aluminised steel internal construction throughout the griddle section
• Griddle positioned on right-hand side as standard; left-hand or centre available to order
• Optional hot plate elements using machine-ground 8mm steel plate
• GN 2/1 electric static oven
• 6.5kW oven heating elements
• Fully welded and vitreous enamelled oven liner
• Cast iron even-heat oven sole plate
• Four-position oven racking with robust, tool-free-removal heavy wire chrome rack supports
• Supplied with two chrome wire oven racks
• Welded-frame drop-down oven door with a heavy-duty spring hinge assembly
• Oven door outer panel in 0.9mm 304 stainless steel
• Press-formed vitreous enamelled oven door inner panel in 1.0mm steel
• High-density fibreglass oven insulation
• Stay-cool stainless steel door handle fitted with cast metal handle mounts
• Six temperature settings plus simmer setting
• Heavy-duty reinforced control knobs
• Total volume: 1.03m³
• Packed weight: 260kg

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
