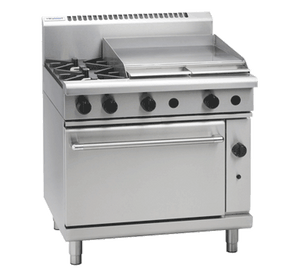

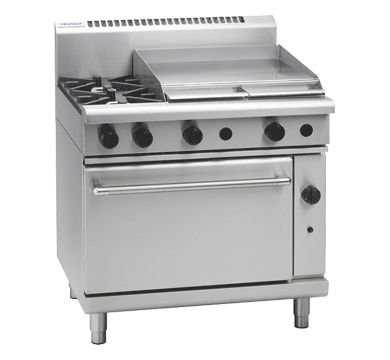

Waldorf RNL8616G 800 Series 900mm Gas Range Static Oven Low Back Version

The Waldorf RNL8616G is a heavy-duty 900mm gas range from the Waldorf 800 Series, combining a two-burner cooktop with a 600mm griddle and a 2/1 GN gas static oven in a single low back configuration. Manufactured in New Zealand from 304 stainless steel, it is engineered for the sustained demands of commercial kitchens, offering a total burner output of 56 MJ/h and an oven temperature range of 150 to 300°C.

Designed with practical serviceability in mind, the RNL8616G features removable cast iron burners, vitreous enamel pot stands and oven lining, adjustable feet and two additional rollers for easy repositioning. Flame failure protection across all burners, reinforced control knobs and a cool touch door handle reflect a considered approach to both operator safety and everyday usability.

Key Benefits

• Consistent, thermostatic oven temperature control between 150 and 300°C supports reliable baking and roasting results across service periods.
• A 2/1 GN oven capacity with two shelves accommodates large-volume cooking, suiting high-output commercial operations.
• Flame failure protection on every burner automatically cuts gas flow if a flame is extinguished, reducing the risk of gas-related incidents.
• The 600mm smooth griddle positioned on the right hand side as standard provides a dedicated, consistent cooking surface alongside the open burners.
• Adjustable feet and two integrated rollers make levelling and repositioning the unit straightforward, saving time during kitchen reconfiguration or cleaning.
• Removable cast iron burners and vitreous enamel pot stands simplify daily cleaning and routine maintenance without specialist tools.
• A welded oven frame with vitreous enamel lining resists staining and grease build-up, reducing the effort required for thorough cleaning.
• Compatible with both natural gas and LPG via a 3/4 inch BSP male connection, offering flexibility across different kitchen gas supplies.
• Heavy-duty 304 stainless steel construction delivers long-term durability and hygiene compliance in demanding commercial environments.

Key Features

• 900mm wide low back configuration as part of the Waldorf 800 Series
• Two-burner cooktop combined with a 600mm smooth griddle (griddle positioned on the right hand side as standard)
• 2/1 GN gas static oven with two shelves and thermostatic temperature control (150 to 300°C)
• Two open burners rated at 28 MJ/h each
• Two griddle burners rated at 20 MJ/h each, providing a total output of 56 MJ/h (15.6 kW)
• Flame failure protection fitted to all burners
• Removable heavy-duty cast iron burners and vitreous enamel pot stands
• Oven cavity welded and lined with vitreous enamel for durability and easy cleaning
• Drop down oven door with welded frame
• Cool touch stainless steel door handle
• Heavy-duty reinforced control knobs with analogue display
• Adjustable feet plus two additional rollers for mobility and levelling
• 304 stainless steel construction throughout
• Compatible with natural gas and LPG; R 3/4 (BSP) male gas connection
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 56
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas
• Number of Burners: 2
• Griddle Surface: Smooth
• Power Rating: 15.6 kW
• Temperature Control: Thermostatic
• Display Type: Analog
