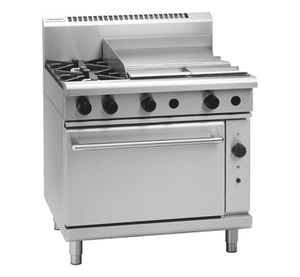

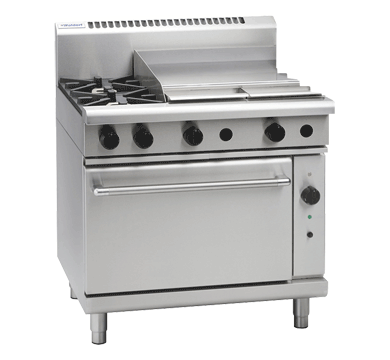

Waldorf RNL8616GC 800 Series 900mm Gas Range Convection Oven Low Back Version

The Waldorf RNL8616GC is a 900mm wide gas range from the Waldorf 800 Series, combining a two-burner cooktop and a 600mm griddle section above a 2/1 GN gas convection oven. Manufactured in New Zealand from 304 stainless steel, the low back configuration suits kitchens where overhead clearance or sight lines matter, while the full-sized oven cavity delivers consistent fan-forced results across a temperature range of 150 to 300°C.

Designed for the rigours of high-volume commercial kitchens, the RNL8616GC features flame failure protection on every burner, cast iron sole plates for even heat distribution, and heavy-duty convection motors and circulation fans that reduce cooking times and allow food to be cooked at lower temperatures. The unit accepts both natural gas and LPG, ships ready for a 3/4 BSP male gas connection, and includes adjustable feet plus two rollers for straightforward positioning and servicing.

Key Benefits

• Fan-forced convection circulation delivers even, consistent heat throughout the oven cavity, reducing cooking times and allowing lower temperature settings to conserve energy.
• Cast iron sole plates distribute heat uniformly across the oven floor, preventing hot spots and improving results for baking and roasting.
• Flame failure protection on all burners automatically cuts gas flow if a flame is extinguished, providing a critical safety safeguard in busy kitchen environments.
• The combination of open burners and a 600mm griddle on a single 900mm footprint maximises cooking versatility without requiring additional floor space.
• Adjustable feet and two integrated rollers make it easy to level the unit on uneven floors and to move it out for cleaning or servicing.
• Vitreous enamel oven lining and welded oven construction simplify cleaning and resist the corrosive effects of cooking residues over time.
• Removable cast iron burners and vitreous enamel pot stands can be lifted out quickly for thorough cleaning, reducing downtime between services.
• Compatibility with both natural gas and LPG gives operators flexibility when installing across different sites or adapting to available gas supply.

Key Features

• 900mm wide low back configuration suits kitchens with overhead clearance requirements or open kitchen sight lines
• 2/1 GN gas convection oven with heavy-duty motor and circulation fan
• Cast iron sole plates inside the oven for even heat distribution
• Two-burner cooktop with 600mm griddle section; griddle positioned on the right-hand side as standard
• 2 x 28MJ/hr open cooktop burners with patented burner design
• 2 x 20MJ/hr griddle burners
• Flame failure protection fitted to all burners
• Removable heavy-duty cast iron burners for easy cleaning and maintenance
• Vitreous enamel pot stands, removable for cleaning
• Drop-down oven door with welded frame for robust, long-term use
• Oven cavity lining is welded and finished in vitreous enamel for durability and easy cleaning
• Cool-touch stainless steel door handle for operator safety
• Heavy-duty reinforced control knobs built to withstand frequent commercial use
• Thermostatic oven temperature control with analogue display; temperature range 150 to 300°C
• Accepts natural gas or LPG; 3/4 BSP male gas connection
• Total burner output 56MJ/hr
• Electrical supply required: 0.13kW, 0.6A, single phase + neutral + earth, 230-240V AC, 50/60Hz (for fan motor)
• Adjustable feet plus two additional rollers for levelling and repositioning
• Heavy-duty 304 stainless steel construction throughout
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 56
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 2
• Griddle Surface: Smooth
• Power Rating: 0.13kW|0.6A|1P+N+E|230-240Vac|50/60Hz
• Temperature Control: Thermostatic
• Display Type: Analog
