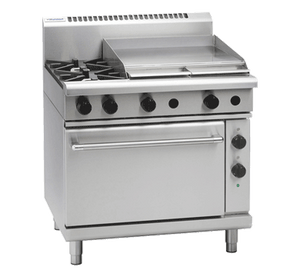

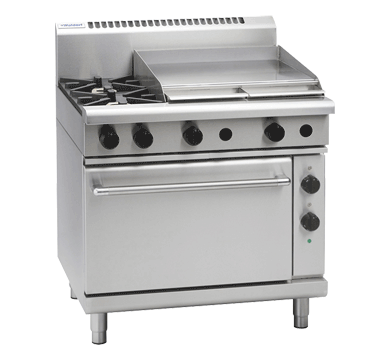

Waldorf RNL8616GE 800 Series 900mm Gas Range Electric Static Oven Low Back Version

The Waldorf RNL8616GE is a heavy-duty 900mm commercial range from the 800 Series, combining a two-burner gas cooktop with a 600mm griddle surface and a 2/1 GN electric static oven in a low back configuration. Constructed from 304 stainless steel and manufactured in New Zealand, this unit is engineered for the rigours of high-volume commercial kitchen operation, delivering consistent performance across both the cooktop and oven cavity.

The cooktop features two 28MJ/hr open burners and two 20MJ/hr griddle burners, with the griddle positioned on the right-hand side as standard. Below, the vitreous enamel-lined electric static oven provides reliable, even heat across a temperature range of 150 to 300°C, making it well suited to baking, roasting, and a broad range of commercial cooking applications. Adjustable feet, two additional rollers, and a design focused on easy cleaning, installation, and servicing add practical value for busy kitchen teams.

Key Benefits

• Flame failure protection on all burners provides an important safety safeguard in fast-paced kitchen environments.
• Cast iron sole plates in the oven promote even heat distribution, supporting consistent baking and roasting results across the full cavity.
• The 600mm griddle surface alongside two open burners maximises versatile cooking output from a single 900mm footprint.
• Vitreous enamel oven lining and welded construction simplify cleaning and contribute to long-term durability.
• Adjustable feet and two integrated rollers make positioning and levelling straightforward during installation or kitchen reconfiguration.
• Thermostatic temperature control across the 150 to 300°C oven range allows precise, repeatable cooking results.
• Removable cast iron burners and vitreous enamel pot stands streamline routine cleaning and maintenance without specialist tools.
• Heavy-duty reinforced control knobs and a cool touch stainless steel door handle are built to withstand the demands of daily commercial use.
• A 24-month warranty and New Zealand manufacture back the unit's reliability and support long-term operational confidence.

Key Features

• 900mm wide 800 Series low back range configuration
• Two-burner gas cooktop combined with a 600mm smooth griddle surface
• 2/1 GN electric static oven cavity
• Two 28MJ/hr open cooktop burners
• Two 20MJ/hr griddle burners
• Griddle positioned on the right-hand side as standard
• Flame failure protection on all burners
• Removable heavy-duty cast iron burners
• Vitreous enamel pot stands
• Oven lining is welded and finished with vitreous enamel for durability and easy cleaning
• Drop down oven door with welded frame
• Cool touch stainless steel door handle
• Heavy-duty reinforced control knobs
• Thermostatic oven temperature control, 150 to 300°C
• Two oven shelves included
• Adjustable feet and two additional rollers for easy positioning
• Splashback included
• 304 stainless steel construction throughout
• 6.5kW electric oven, single phase connection on 415V 3-phase supply
• Gas connection: R 3/4 (BSP) male, compatible with natural gas and LPG
• Analog temperature display
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 56
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 2
• Griddle Surface: Smooth
• Power Rating: 1 phase connection|6.5kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
