Overview

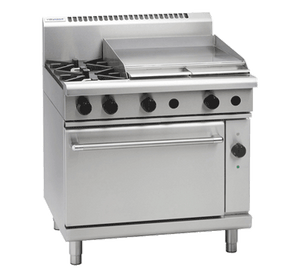

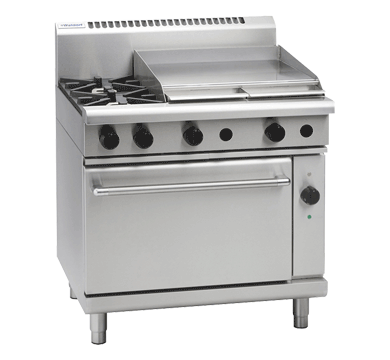

Waldorf RNL8616GEC 800 Series 900mm Gas Range Electric Convection Oven Low Back Version

The Waldorf RNL8616GEC is a heavy-duty 900mm gas range with electric convection oven from the renowned 800 Series, engineered for the demands of busy commercial kitchens. The cooktop combines two 28MJ/hr open burners with a 600mm smooth griddle powered by two 20MJ/hr griddle burners, while the underbench 2/1 GN electric convection oven delivers consistent, fan-forced results across a temperature range of 150 to 300°C. Constructed from 304 stainless steel and made in New Zealand, this low back version is built to perform reliably day after day.

Thoughtful design details make the RNL8616GEC practical for high-volume operations. Flame failure protection is fitted to all burners for safety, removable cast iron burners and vitreous enamel pot stands simplify cleaning, and the oven cavity is welded and lined with vitreous enamel for durability and hygiene. Adjustable feet plus two additional rollers allow straightforward positioning and levelling on the kitchen floor, while reinforced control knobs and a cool touch stainless steel door handle withstand the rigours of continuous professional use.

Key Benefits

• Fan-forced convection circulation reduces cooking times and allows food to be cooked at lower temperatures, improving energy efficiency and throughput.
• Two 28MJ/hr open burners deliver powerful, responsive heat for rapid boiling, sautéing and general stovetop cooking.
• The 600mm smooth griddle, driven by two dedicated 20MJ/hr burners, provides a large flat cooking surface ideal for breakfast service, proteins and vegetables.
• 2/1 GN oven capacity supports batch cooking across multiple trays, maximising output during peak service periods.
• Flame failure protection on every burner automatically cuts gas if a flame is extinguished, enhancing kitchen safety.
• Vitreous enamel oven lining and welded cavity construction are easy to wipe down and resist staining, reducing cleaning time between services.
• Removable cast iron burners and vitreous enamel pot stands can be lifted out quickly for thorough cleaning without tools.
• Adjustable feet and two additional rollers make installation, repositioning and routine servicing straightforward.
• Reinforced control knobs and a cool touch stainless steel door handle are designed to endure constant use in demanding commercial environments.

Key Features

• 900mm wide low back configuration suited to suite or island installation
• Two 28MJ/hr open cooktop burners with flame failure protection
• 600mm smooth griddle positioned on the right-hand side as standard, powered by two 20MJ/hr griddle burners
• Flame failure protection fitted to all cooktop burners
• Removable heavy-duty cast iron burners and vitreous enamel pot stands for easy cleaning
• 2/1 GN electric convection oven with thermostatic temperature control from 150°C to 300°C
• Heavy-duty motor and circulation fan in the convection oven for even heat distribution
• Cast iron sole plates in the oven for consistent base heat
• Oven cavity is fully welded and lined with vitreous enamel
• Drop down oven door with welded frame construction
• Cool touch stainless steel door handle
• Reinforced control knobs for durability under heavy use
• 304 stainless steel construction throughout
• Adjustable feet plus two additional rollers for levelling and mobility
• 6.6kW electric oven on a 415V 3-phase power supply
• Gas connection via R 3/4 BSP male fitting, compatible with natural gas and LPG
• Analog display with thermostatic oven control
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 56
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 2
• Griddle Surface: Smooth
• Power Rating: 1 phase connection|6.6kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
