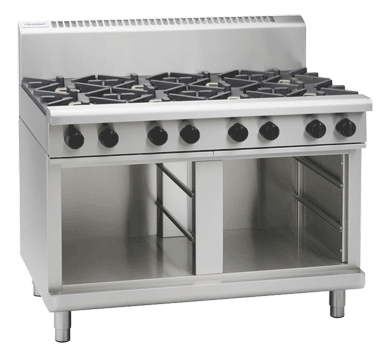

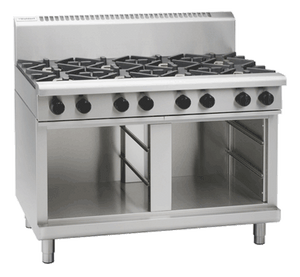

Waldorf RNL8800G-CB 800 Series 1200mm Gas Cooktop Low Back Version – Cabinet Base

The Waldorf RNL8800G-CB is a heavy-duty 1200mm gas cooktop from the 800 Series, mounted on a cabinet base and designed for demanding commercial kitchen environments. It features eight open burners, each rated at 28MJ/hr for a combined output of 224MJ/hr (62.2kW), delivering responsive, high-performance cooking across the full surface. Constructed from 304 stainless steel and made in New Zealand, this unit is built to handle the rigours of continuous professional use.

Designed with practicality in mind, the RNL8800G-CB incorporates flame failure protection on every burner, removable cast iron burners and vitreous enamel pot stands with extended finger supports that allow cookware to slide smoothly from burner to burner. The low back splashback configuration suits installations where a full-height upstand is not required, and the cabinet base with door provides enclosed underbench storage. Compatible with both natural gas and LPG, it also accepts optional hot top simmer plates and 300, 600 or 900mm griddle plate inserts for added versatility.

Key Benefits

• Eight 28MJ/hr open burners deliver powerful, even heat across the full 1200mm surface, reducing cook times during peak service periods.
• Flame failure protection on all burners automatically cuts gas supply if a flame is extinguished, improving safety for kitchen staff.
• Vitreous enamel pot stands with extended finger supports allow pots and pans to slide easily between burners, streamlining workflow without lifting heavy cookware.
• Removable cast iron burners and pot stands simplify routine cleaning and allow individual components to be serviced or replaced without major downtime.
• Heavy-duty reinforced control knobs withstand the demands of continuous commercial use, reducing wear and maintenance costs over time.
• Adjustable feet combined with two additional rollers make levelling straightforward during installation and allow the unit to be repositioned for cleaning or servicing.
• Compatible with hot top simmer plates and 300, 600 or 900mm griddle plate inserts, giving operators flexibility to adapt the cooktop surface to changing menu requirements.
• Accepts both natural gas and LPG via a 3/4 BSP male connection, offering flexibility across different site configurations.
• Cabinet base with door provides enclosed underbench storage directly beneath the cooking surface, making efficient use of valuable kitchen floor space.

Key Features

• Eight open burners, each rated at 28MJ/hr, with a combined output of 224MJ/hr (62.2kW)
• Flame failure protection fitted to all eight burners
• Removable heavy-duty cast iron burners for ease of cleaning and maintenance
• Vitreous enamel pot stands with extended finger supports to facilitate smooth movement of cookware between burners
• Heavy-duty reinforced control knobs with variable high-low temperature control
• 304 stainless steel construction throughout
• Low back splashback included
• Cabinet base with door for enclosed underbench storage
• Adjustable feet and two additional rollers for levelling and repositioning
• Compatible with optional hot top simmer plates and 300, 600 or 900mm griddle plate inserts
• Dual fuel compatibility: natural gas and LPG
• Gas connection: R 3/4 (BSP) male
• Manufactured in New Zealand

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 224
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Cabinet Door
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Variable High-Low
• Fuel Type: Gas
• Number of Burners: 8
• Power Rating: 62.2 kW
• Temperature Control: Variable High-Low
