Overview

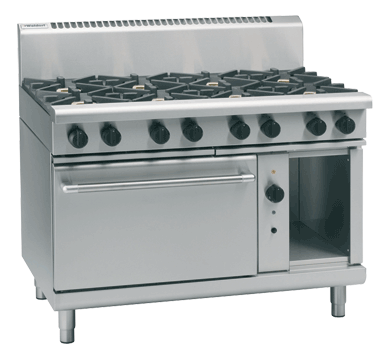

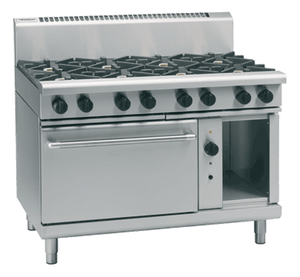

Waldorf RNL8810GC 800 Series 1200mm Gas Range Convection Oven Low Back Version

The Waldorf RNL8810GC is a 1200mm wide, eight-burner gas range from the Waldorf 800 Series, combining a high-output cooktop with a 2/1 GN gas convection oven in a single heavy-duty stainless steel unit. Manufactured in New Zealand from 304 stainless steel, it is engineered to handle the sustained demands of busy commercial kitchens, bakeries, cafes and catering operations, with a low back profile suited to installations requiring a reduced height footprint.

The cooktop delivers 224MJ/h total output across eight patented 28MJ/h open burners fitted with flame failure protection and removable cast iron burners over vitreous enamel pot stands. Below, the convection oven uses a heavy-duty motor and circulation fan to reduce cooking times and allow lower operating temperatures, while cast iron sole plates promote even heat distribution throughout the cavity. A right-hand storage cabinet, adjustable feet, and two rollers add further practicality to this self-contained cooking suite.

Key Benefits

• Fan-forced convection circulates heat evenly throughout the oven cavity, enabling consistent baking, roasting and reheating results across all four shelves simultaneously.
• Heavy-duty motors and circulation fans reduce overall cooking times and allow food to be cooked at lower temperatures, saving energy during peak service.
• Eight high-output 28MJ/h open burners deliver rapid response and precise heat control across the full width of the cooktop, supporting multiple cooking tasks at once.
• Flame failure protection on every burner automatically cuts gas supply if a flame is extinguished, providing a critical safety safeguard in a busy kitchen environment.
• Vitreous enamel oven lining and welded interior construction make the oven cavity straightforward to wipe down, reducing cleaning time between services.
• Removable cast iron burners and vitreous enamel pot stands can be lifted out easily for thorough cleaning and routine maintenance without specialist tools.
• Adjustable feet combined with two additional rollers allow the unit to be levelled accurately on uneven floors and repositioned for cleaning or servicing with minimal effort.
• The right-hand storage cabinet provides convenient on-hand storage for trays, utensils or dry goods directly at the point of use.
• Compatible with both natural gas and LPG supplies via a standard 3/4 BSP male connection, giving flexibility across different site configurations.

Key Features

• 800 Series low back version, 1200mm wide configuration
• Eight-burner cooktop with eight individual 28MJ/h patented open burners, 224MJ/h total output
• Flame failure protection fitted to all eight burners as standard
• Removable heavy-duty cast iron burners with vitreous enamel pot stands
• 2/1 GN capacity gas convection oven with heavy-duty motor and circulation fan
• Cast iron sole plates in the oven for even heat distribution throughout the cavity
• Oven temperature range 150 to 300°C with thermostatic control and analogue display
• Four oven shelves included
• Oven lining welded and finished with vitreous enamel for durability and easy cleaning
• Drop-down oven door with welded frame construction
• Cool-touch stainless steel door handle
• Heavy-duty reinforced control knobs throughout
• Storage cabinet on the right-hand side
• Splashback fitted as standard
• Heavy-duty 304 stainless steel exterior finish
• Adjustable feet plus two additional rollers for levelling and repositioning
• Accepts natural gas or LPG; R 3/4 BSP male gas connection
• Electrical supply required: 0.13kW, 0.6A, 230-240V AC, 50/60Hz, 1P+N+E
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 345.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 224
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 4
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 8
• Power Rating: 0.13kW|0.6A|1P+N+E|230-240Vac|50/60Hz
• Temperature Control: Thermostatic
• Display Type: Analog
